Electrical Requirements: 110V/220V/230V/240V (50/60Hz) 1PH
Strapping Capacity: 27 straps/min (60Hz, 1PH)
Strap Requirement: Strap width: 8, 9 mm/ 12mm/ 15.5 mm, Strap thickness: 0.55 ~ 0.75 mm
Tension Range: 7 ~ 45 kg
Dimension W x D x H: 1430 x 620 x 1540 mm (arch size W x H: 850 x 600mm)
Table Height: 810 mm
Machine Net Weight: 220 kg
Maximum Package Weight: 100 kg
Maximum Package Size: Arch width minus 100 mm x Arch height minus 50 mm (for example: arch size W850 mm x H600 mm, maximum package size is W750 mm x H550 mm)
Minimum Package Size: 100W × 20H mm
Strap Core Inner Diameter: 200 mm / 230mm / 280 mm (interchangeable)
Power Consumption: 1.2 kW
Temperature of working environment: 5 ~ 40℃
Options
Short feed sensor
Smoke exhaust system with carbon filter
Table without free roller
PU casters (2 free and 2 with brake)
Video

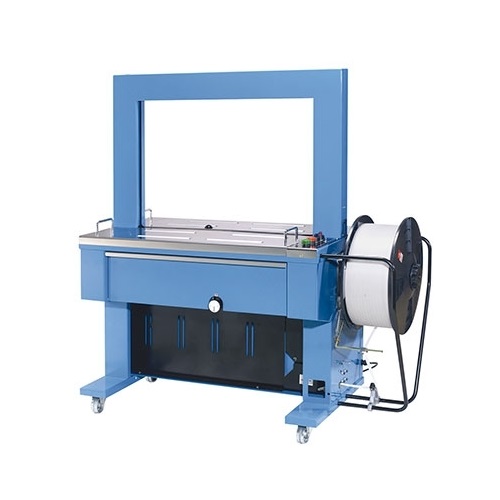

Transpak TP6000 Automatic Strapping Machine
Datasheet
The TP-6000 is an economy automatic strapping machine for PP strapping. Easy operation and simple maintenance. The proven quality and performance make TP-6000 the most cost effective solution for general applications.
Features
Lubrication free strapping head
External mechanical tension control
Multiple methods of cycle initiation
Affordable choice for every budget
