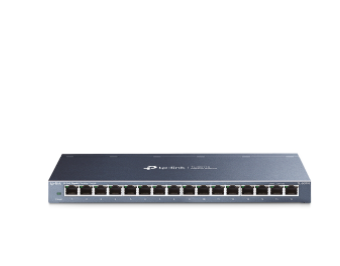

Tp-Link TL-SG116 Network port

Standards and Protocols: IEEE 802.3i /802.3u /802.3ab /802.3x /802.1p

Interface: 16 10/100/1000Mbps ports, auto-negotiation, auto MDI/MDIX

Number of fans: No fan

Physical security key: Yes

Power Consumption: Max: 10.0W

External power supply unit (EU)

External power adapter (Output: 12VDC / 1.0A)

LED indicator: Power system

Per-port Link/Act indicators built into each RJ-45 . port

Dimensions ( R x D x C ): 11.26 x 4.4 x 1.0 in. (286*111.7*25.4 mm)

Maximum Power Consumption: 10W(220V/50Hz)

Max Heat Dissipation: 34.12BTU/h

EFFICIENCY

Packet Transfer Rate: 23.8Mpps

MAC address table: 8K

Packet Cache: 4.1Mb

Jumbo Frame: 10KB

SOFTWARE FEATURES

Advanced Features: Green Technology

Flow Control: 802.3X

802.1p/DSCP QoS

IGMP Snooping

Transfer Method: Store and Forward

OTHER

CE, FCC, RoHS . Certificates

Products include: 16 port 10/100/1000Mbps desktop switch

Power adapter

Installation Instructions

Rubber feet

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)

Storage Temperature: -40°C~70°C (-40°F~158°F)

Operating Humidity: 10%~90%, no condensation

Storage humidity: 5%~90% non-condensing
