HARDWARE FEATURES
Interface: 1 Gigabit Ethernet Port
Button:
WPS Button
Reset Button
Input Power: 100–240V~50/60Hz
Max. Power Consumption: 13 W
Dimensions (W × D × H): 97 × 46 × 158 mm
Antenna: 2 External Antennas
WIRELESS FEATURES
Wireless Standards:
IEEE 802.11a/n/ac/ax 5GHz
IEEE 802.11b/g/n/ax 2.4GHz
Frequency: 2.4GHz and 5GHz
Signal Rate:
574 Mbps at 2.4GHz
2402 Mbps at 5GHz
Working Modes: Range Extender / Access Point
Reception Sensitivity:
5GHz:
11a 6Mbps: -97 dBm
11a 54Mbps: -78 dBm
11ax HE20 MCS0: -96 dBm
11ax HE20 MCS11: -66 dBm
11ax HE40 MCS0: -93 dBm
11ax HE40 MCS11: -62 dBm
11ax HE80 MCS0: -90 dBm
11ax HE80 MCS11: -60 dBm
11ax HE160 MCS11: -58 dBm
2.4GHz:
11g 6Mbps: -96 dBm
11g 54Mbps: -78 dBm
11ax HE20 MCS0: -96 dBm
11ax HE20 MCS11: -66 dBm
11ax HE40 MCS0: -93 dBm
11ax HE40 MCS11: -62 dBm
Wireless Functions:
Enable/Disable Wireless Radio
DFS (latest firmware & hardware required)
Access Control
LED Control
Power Schedule
Wi-Fi Coverage Adjustment
Wireless Security:
WEP
WPA
WPA2
WPA3
Transmission Power (CE):
2.4 GHz: ≤ 16 dBm
5 GHz: ≤ 21 dBm
Mesh Technology: EasyMesh-Compatible
OTHER
Network Services Enabled by Default:
Web Server: Manage device via HTTP/HTTPS
Port: 80/443 — Protocol: TCP
DHCP Server: IP assignment
Port: 67 — Protocol: UDP
App Management:
Port: 20001 — Protocol: TCP
Port: 20002 — Protocol: UDP
Certification: CE, RoHS
Package Content:

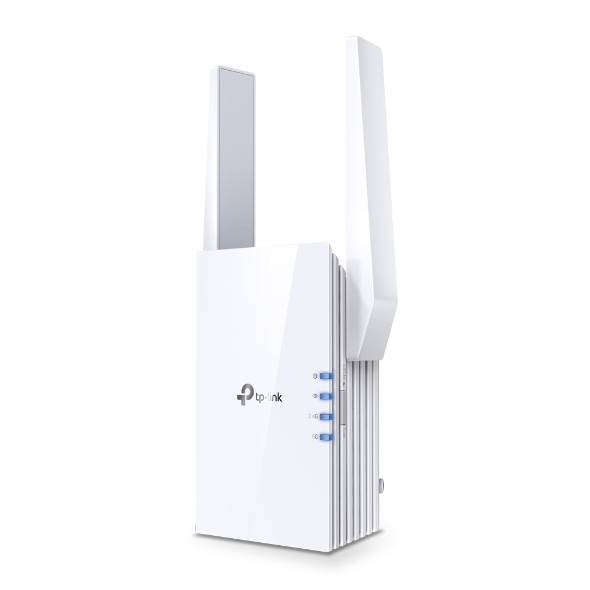

Wi-Fi Range Extender RE705X
Quick Installation Guide
System Requirements:
Microsoft Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10, Mac OS, NetWare, UNIX, Linux
Browser: IE 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Environment:
Operating Temperature: 0℃–40℃
Storage Temperature: -40℃–70℃
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing
