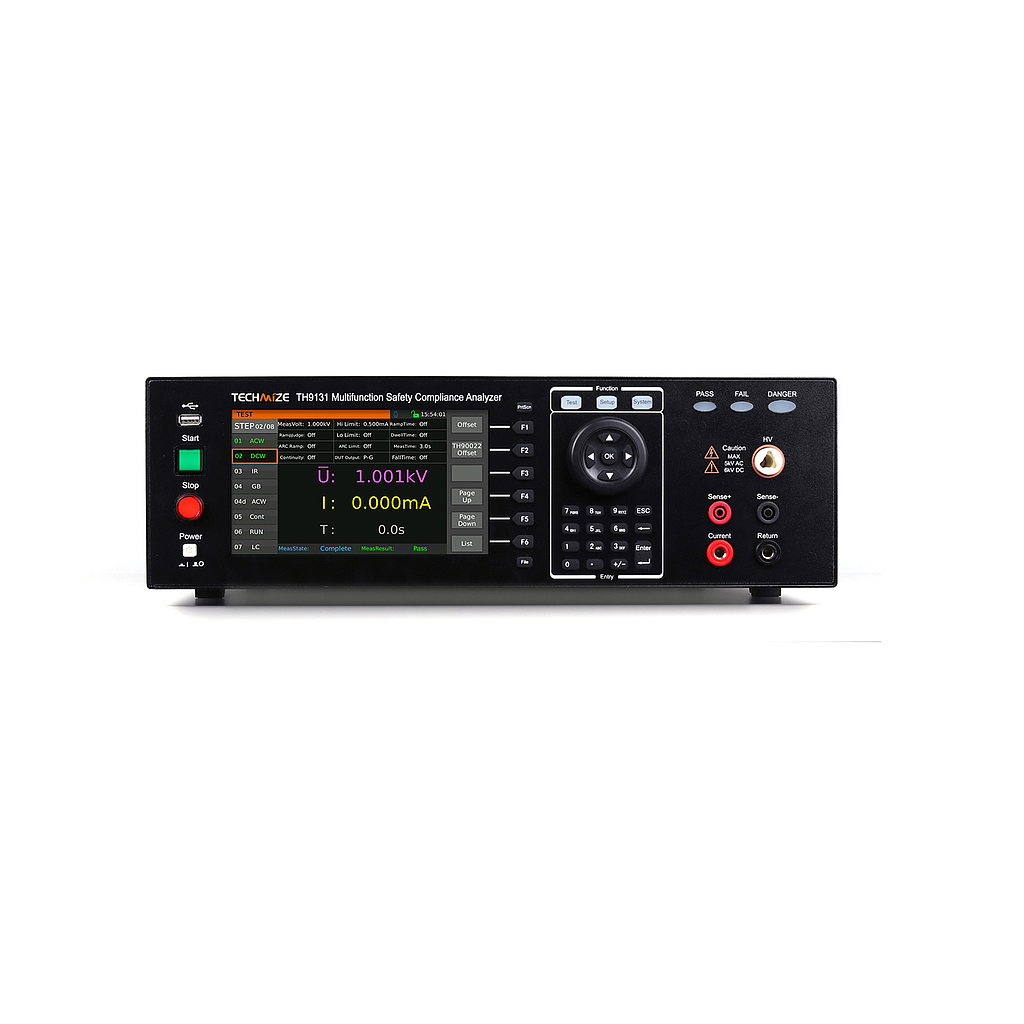

Tonghui TH9131 Multifunction Safety Compliance Analyzer (AC: 5.0kV/40mA/200VA)

AC withstand voltage: 5.0kV/40mA/200VA

DC withstand voltage: 6.0kV/12mA/120VA

Insulation resistance:

+ Voltage: 5.0kV

+ Resistance: 50.0GΩ

Ground resistance:

+ Current: 40.00A ( AC )

+ Voltage: 3.00-8.00V

+ Resistance: 0-600mΩ

Conductivity:

+ Current: 0.0001A-0.1A

+ Resistance: 0.00-10.000kΩ

Electrical Testing:

+ Voltage: 0.0-277.0V

+ Current: 0.00-16.00A

+ power: 0-4500W

+ Power Factor: 0.000-1.000

+ Leakage Current: 0.00-10.00mA

Leakage Current:

+ Power supply: 0-277Vac, 16Aac max

+ Leakage Current: 0.0uA-10.00mA

+ Current frequency: DC , 15Hz-1MHz

+ Impedance Network: 7 groups

Datasheet
