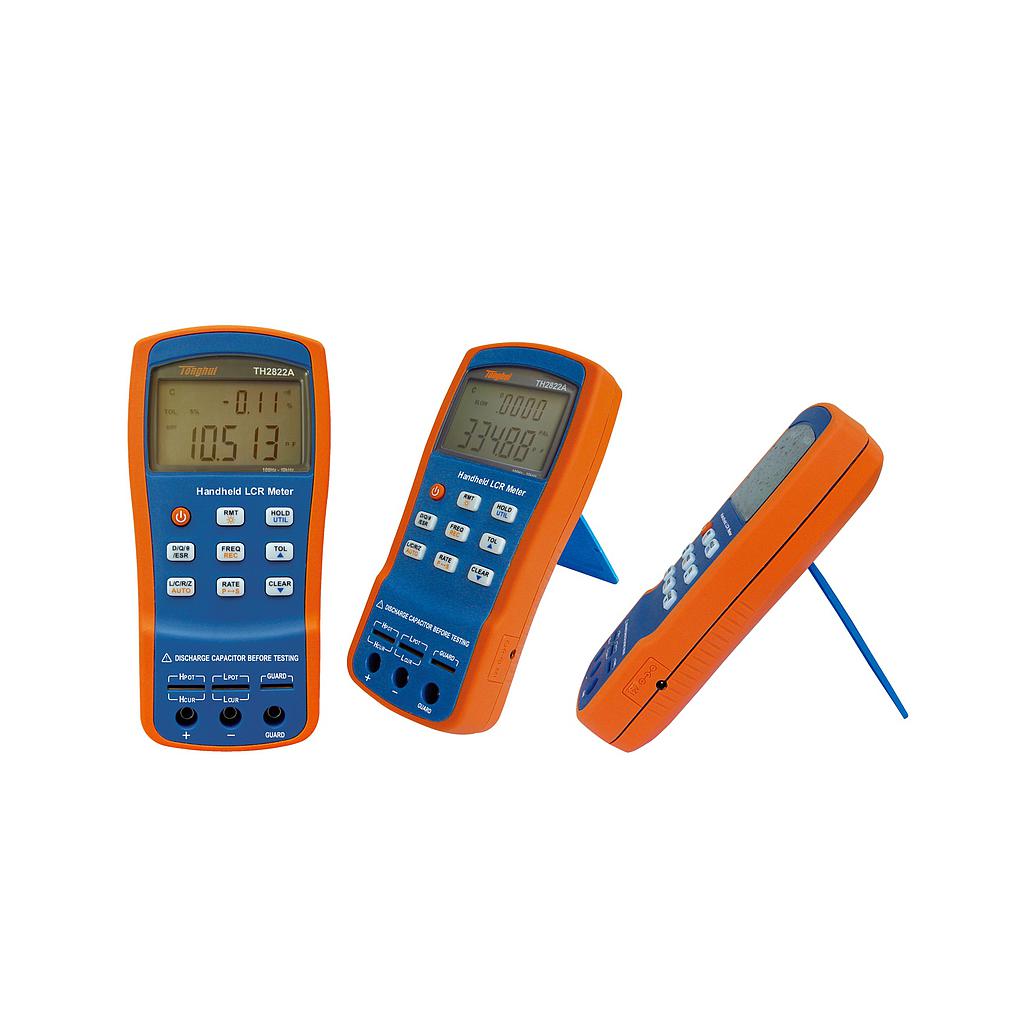

Test Parameter:
- Primary parameters: L / C / R / Z
- Secondary parameters: D / Q / R /θ/ ESR
Equivalent Circuit: Series and Parallel
Ranging Mode: Auto
Measurement Terminals: 3-terminal, 5-terminal
Measuring Speed: 4meas/sec, 1.5meas/sec
DCR Measuring Speed: ------
Calibration Function: Open, short
Comparator Function: 1%, 5%, 10%, 20%
Input fuse: 0.1A / 250V
Interface: Mini-USB (virtual serial port)
Test Signal:
Test Frequency: 100Hz,120Hz,1kHz,10kHz,
Test Level: 0.6Vrms
Output Resistance: 100Ω
Display:
Display: LCD Primary-Secondary dual display, with backlight (TH2822 not available)
Reading: Max. Primary parameters: 40,000 digits, secondary parameters D/Q Minimum resolution: 0.0001
Basic Accuracy: 0.25%
Measuring Range
- L: 0.00μH - 1000.0H
- C: 0.00pF - 20.000mF
- Z/R: 0.0000Ω- 10.000MΩ
- DCR: ------
- ESR: 0.0000Ω- 999.9Ω
- D: 0.0000 - 9.999
- Q: 0.0000 - 9999
- Θ: 0.00°- ±180.0°
Power Requirements:
Battery Model: TH2822 / A: IEC 6LR61, 9V alkaline battery
AC Power Adapter: Input: 220V/50Hz, Output: 12V-15V (100Ω Load)
Standby Current: Max.2μA
Battery Life: 16 hours (typical), new alkaline battery, with backlight off
Auto Power Off: 5min, 15min, 30min, 60min, OFF available; Factory Default : 5min
Low Voltage Indicator: When battery voltage drops below 6.8V, low voltage indicator turns on.
Standard Accessories
MINI USB Communication cable
TH26028 AC power adapter
TH26004F Two-terminal Test Cable
TH26010B Gilded shorting plate
TH26027AS 4 terminal Kelvin test cable(not included in TH2822)
TH26029C SMD Kelvin test cable(not included in TH2822/A)
8.4V Rechargeable battery(not included in TH2822/A)
Alkaline battery(only for TH2822/A)
