Function: Injection and Diffusion
Cylindrical range: Φ60, H100mm or less, according to the 18650 calculation standard with 4 stations, 4 notes at a time
Range of capacity: 0.2ml~200ml
Core liquid injection: 0.2g~200g
Injection accuracy: ±0.5%
Exhalation velocity: 6ml/s adjustable
In and out pipe: The liquid inlet pipe 6
Adjustable stroke: Maximum X-axis stroke 0~80mm (center)
Material: Manufacture of stainless Steel 304 and 316 corrosion-resistant material in key parts
External dimension: L400mm×W260mm×H500mm
Power supply: AC220V/50Hz/0.5KW
Weight: 70kg

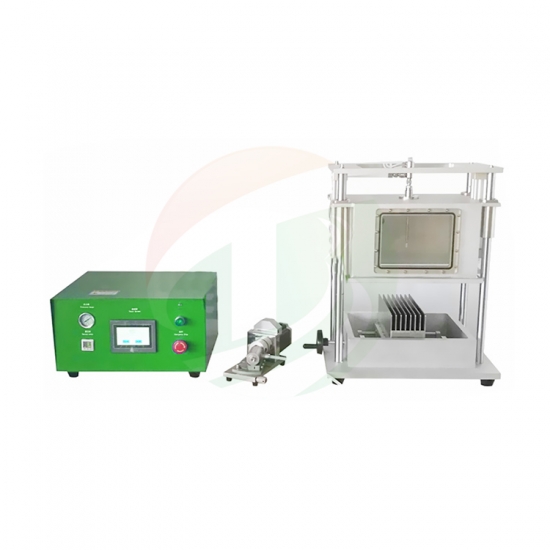

Product introduction
Applicable to the injection and diffusion process of battery capacitors, after vacuuming and then filling and make diffusion. The electrolyte is more precision, absorption consistency, high reliability.
Main characteristics
* One machine includes injection and diffusion functions;
* High measurement accuracy and repeatability;
*Injecting liquid after vacuuming, high efficiency, accurate accuracy, convenient and reliable operation;
*Injection accuracy±0.5%, injection volume 0.2 ml ~ 200 ml;
*The entrance and exit are connected by chemical resistant hoses;
*Can be operated in a glove box or dry room;
*The appearance is exquisite and beautiful, and the performance is stable;
*PLC, touch screen operation, flexible parameters, high automation program;
