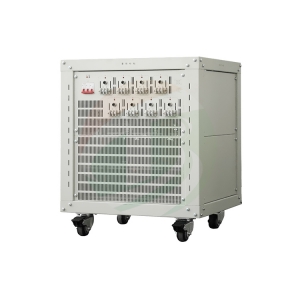

TOB TOB-CT-4008-5V30A-NF Battery And Super Capacitor Tester (5V30A,2127W)

Input Power: AC 220V ±10% / 50Hz (AC110V/60HZ)

Resolution: AD：16bit；DA：16bit

Input Resistance: ≥1MΩ

Input Power: 2127W

Channel Features: Constant Current Source and Constant Voltage Source with Independent pairs of Closed-loop Structure

Channel Control Mode: Independent Control

Voltage

Per Channel Voltage Range: Charge: 25mV~5V；Discharge：25mV~5V

Discharge Min Voltage: 2.5V

Accuracy: ± 0.05% of FS

Stability: ± 0.05% of FS

Current

Per Channel Current Range: Charge：150mA~30A；Discharge：150mA~30A

Accuracy: ± 0.05% of FS

Stability: ± 0.05% of FS

Power

Per Channel Output Power: 150W

Stability: ± 0.1% of FS

Time

Current Response Time: 1ms (0-Full Range)

Step Time Range: ≤(365*24 )hour/step，Time Form Support 00：00：00(h、min:s、ms)

Data Recording

Record Condition

Lower sampling time：100ms

Lower sampling Voltage：5mV

Lower sampling Current：30mA

Record Frequency : 10Hz

Charge

Charge Mode: Constant Current Charge、Constant Voltage Charge、Constant Current and Constant Voltage Charge、CPC

End Conditon: Voltage、Current、Relative Time、Capacity

Discharge

Discharge Mode: CCD、CPD、CRD

End Condition: Voltage、Current、Relative Time、Capacity、

Pulse

Charge: CCC

Discharge: CCD

Min Pulse Width: 500ms

Automated Switch: Automated swith from charge to discharge for each pulse

End Condition: Voltage, Test Time

Cycle

Loop Measure Range: 1~65535 times

Max Steps Per Loop : 254

Nested Loop: Nested loop Function，Max Support 3 Layers

Protection

Software Protection

Power-down Data Protection

Off-line Testing Function

Setting Protection Condition，Setting Parameter： Low Voltage limit、Upper Voltage limit、Low Current limit、Upper Current limit、Delay Time

Hardware Protection: Additional Anti-reverse Protection Model

Voltage and Current Testing Sample: 4-wire connecting

Noise: <85dB

Database: MySQL Database

A Means of Communication of Upper Machine: TCP/IP Protocol

Data Output: EXCEL、TXT、Graph

Communication Interface: Ethernet Port

Per Unit Main Channels No.: 8

Dimensions: 12U，482*508*378(mm)
