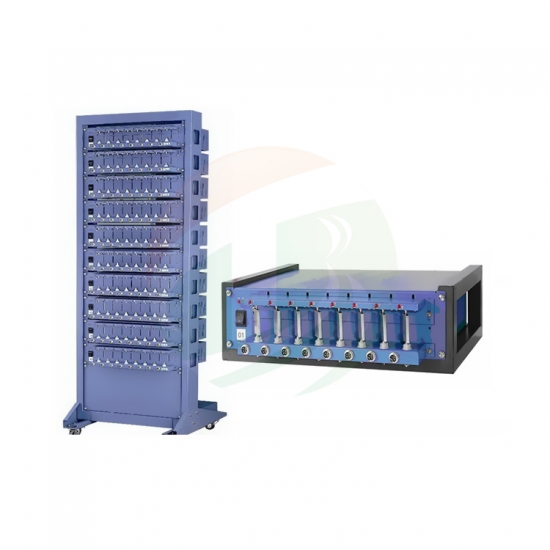

TOB TOB-BTS-5V2A High Precision Battery Testing Machine (1mA~1000A, 2V~500V)

Input Power: 220 V ±10% / 50 Hz

Current output range: ±2200mA

Voltage measuring range: 5V

Input impedance: ≥10MΩ

Power: 100W

Current measurement accuracy: ±（0.2% of reading + 0.1% of range）

Voltage Measurement Accuracy: ±（0.1% of reading + 0.05% of range

Current / voltage / time resolution: 0.1mA /0.1mV/s

Cyclic measurement range: 1-9999times

Data recording condition: timeΔt (1 ~900s)； VoltageΔV (5-5000mV)； Current ΔI (1.5-2200mA)

Connector: RJ45 network

The number of channels per Unit: 8 point

Volume: 197D x 245W x 60H (unit：mm)

Weight: About 10kg
