Pump type: One-way
Power rating: 1.5 / 2.2 / 3.0 kW
Working pressure (low/high): 20 / 700 bar
Flow rate (low/high): 10 / 1.5 – 2.0 – 3.0 L/min
Usable oil capacity: 35 L
Dimensions (L × B × H): 455 × 355 × 630 / 660 mm
Weight: 55.4 / 62.4 / 64.4 kg
Working pressure: 700bar
Large 35 liters oil revervior

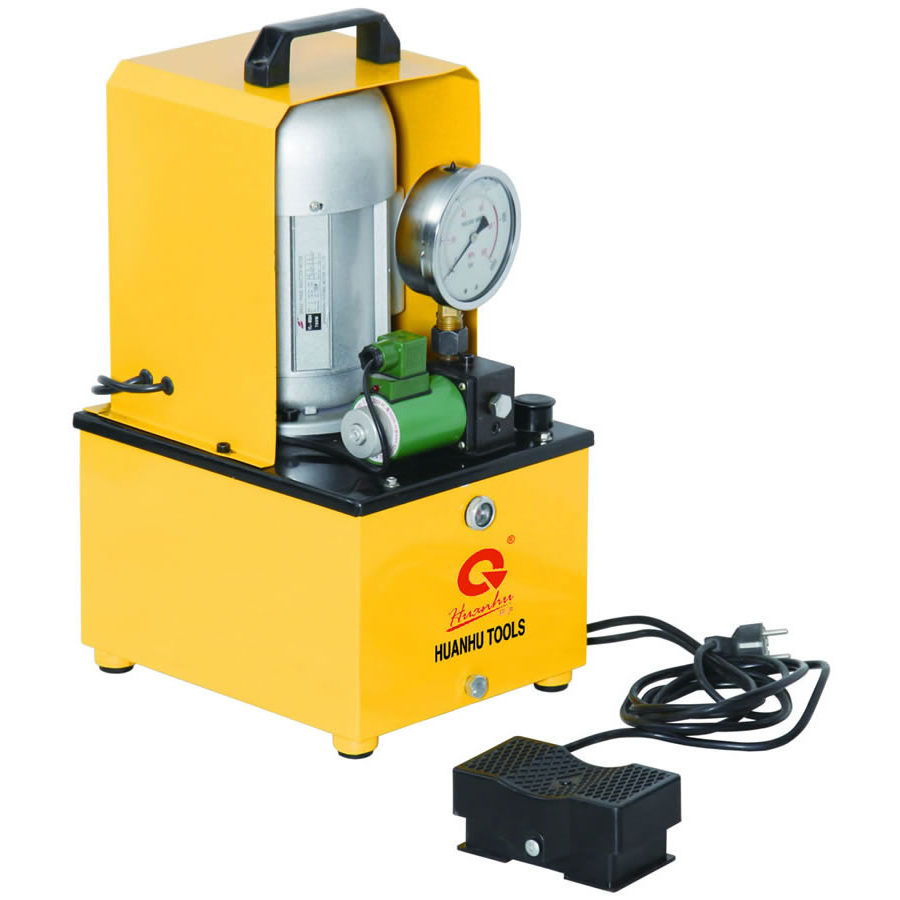

HHB-630M for single-acting applications
●Two-speed operation reduces cycle time for improved productivity.
●All valves are 3 position for Advance-Hold-Retract.
●All the pumps are equipped with pressure gauge, which minimizes the risk of overloading and ensure long, dependable service.
●Manual valve and motor control.
●Internal pressure relief valve prevents overloading.
●Long, trouble free life in the most demanding work environments.
●The pumps have a very large 35 liters oil reservior, which means adequate capacity for multi-cylinder applications.
●Each pump comes with 1.5 meter hose and R2 3/8 quick coupler with dust cap.
