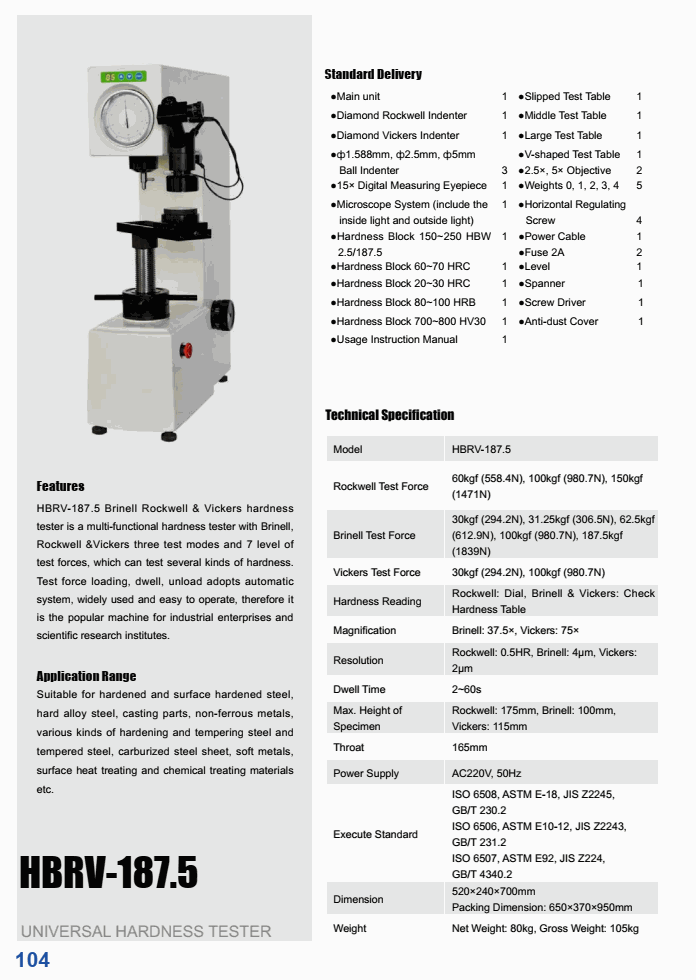

Rockwell Test Force:
60kgf (558.4n), 100kgf (980.7n), 150kgf (1471n)
Brinell Test Force:
30kgf (294.2n), 31.25kgf (306.5n), 62.5kgf (612.9n), 100kgf (980.7n), 187.5kgf (1839n)
Vickers Test Force: 30kgf (294.2n), 100kgf (980.7n)
Hardness Reading:
Rockwell: Dial, Brinell & Vickers: Check Hardness Table
Magnification: Brinell: 37.5×, Vickers: 75×
Resolution:
Rockwell: 0.5HR, Brinell: 4μm, Vickers: 2μm
Dwell Time: 2~60s
Max. Height of Specimen: Rockwell: 175mm, Brinell: 100mm, Vickers: 115mm
Throat: 165mm
Power Supply: AC220V, 50Hz
Execute Standard: ISO 6508, ASTM E-18, jIS Z2245, GB/T 230.2 ISO 6506, ASTM E10-12, jIS Z2243, GB/T 231.2 ISO 6507, ASTM E92, jIS Z224, GB/T 4340.2
Dimension: 520×240×700mm
Packing Dimension: 650×370×950mm
Weight
net Weight: 80kg,
Gross Weight: 105kg
Standard Delivery
Instrument Main Body
Diamond Vickers Indenter
Slipped Test Table
Large Plane Test Table
15× Digital Measuring Eyepiece
Microscope System (include the inside light and outside light)
Hardness Block 60~70 HRC
Hardness Block 80~100 HRB
5 x Weights 0, 1, 2, 3, 4
2 x Fuse 2A
Level
Screw Driver
Diamond Rockwell Indenter
ф1.588mm, ф2.5mm, ф5mmBall Indenter
Middle Plane Test Table
V-shaped Test Table
2.5×, 5× Objective:
Hardness Block 150~250 HBW 2.5/187.5
Hardness Block 20~30 HRC
Hardness Block 700~800 HV30
Power Cable
4 x Horizontal Regulating Screw
Spanner
Anti-dust Cover
Usage Instruction Manual
