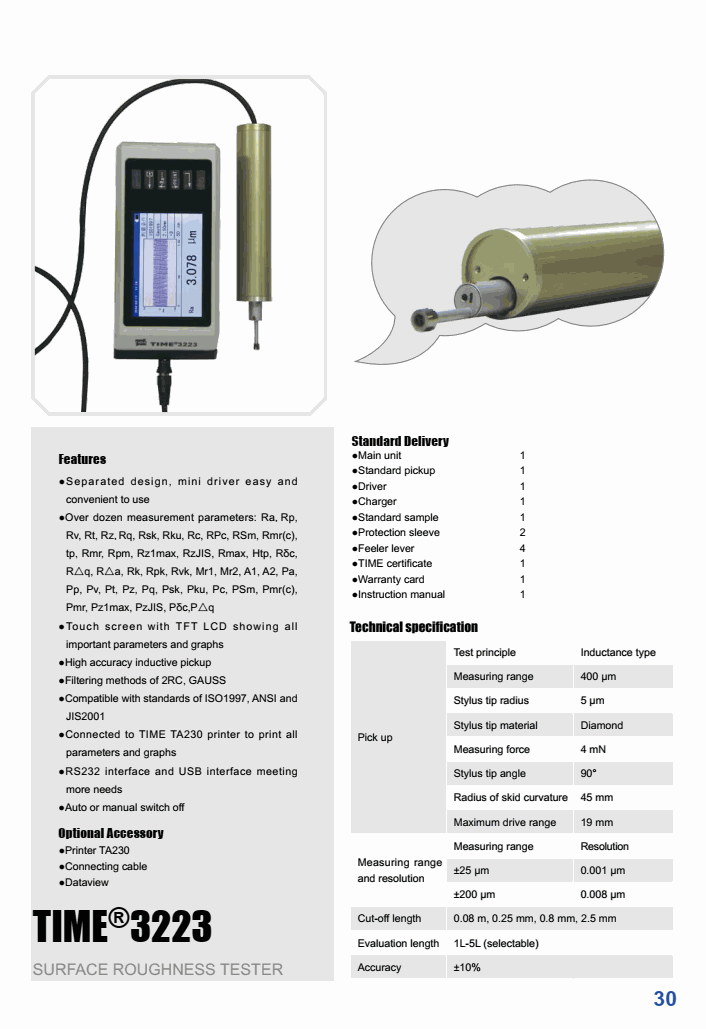

Test principle: Inductance type
Measuring range: 400 µm
Stylus tip radius: 5 µm
Stylus tip material: Diamond
Measuring force: 4 mn
Stylus tip angle: 90°
Radius of skid curvature: 45 mm
Maximum drive range: 19 mm
Measuring range: ±25 µm; ±200 µm
Resolution: 0.001 µm; 0.008 µm
Cut-off length: 0.08 mm, 0.25 mm, 0.8 mm, 2.5 mm
Evaluation length: 1L-5L (selectable)
Accuracy: ±10%
Standard Delivery
Main unit
Standard pickup
Driver
Charger
Standard sample
Protection sleeve
Feeler lever
TIME certificate
Warranty card
Optional Accessory
Printer TA230
Connecting cable
Dataview
