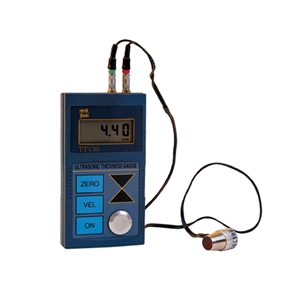

TIME 2134 Ultrasonic Thickness Gauge (1.2mm-300.00mm; 5.0mm-40.0mm)

Measuring range: 1.2mm-300.00mm; 5.0mm-40.0mm (casting iron)

Measuring accuracy: ±(1%H+0.1)mm (H means the thickness of tested piece)

Lower limits of steel pipes: φ20mm x 3.0mm

Display resolution: 0. 1mm or 0.01inch

Data output: /

Sound velocity: 1000m/s~9999m/s

Power supply: AA batteries (2pcs) 1.5V

Battery life: 100 hours without backlight

Sound speed: 1000m/s~9999m/s

Unit scales: mm/inch

Operating temperature: -10℃~ +60℃

Dimensions (mm): 152 ×74 ×35

Weight (g): 370

Standard Delivery

Main unit

Transducer 5PΦ10/90°

Transducer TSTU32 for TIME®2134

Rubber jacket

Couplant

2 x Batteries AA 1.5V

Screwdriver

TIME certificate

Warranty card

Optional Accessory

Optional transducers

Printer TA230 with cable for TIME*2130

Dataview software for TIME*2130

Datasheet
