TIME 2132 Ultrasonic Thickness Gauge (1.2mm-225.0mm/5.0mm-80.0mm)

Specifications:

Measuring range: 1.2mm-225.0mm (steel); 5.0mm-80.0mm (steel high-temp)

Measuring accuracy: ±(1%H+0.1)mm (H means the thickness of tested piece)

Lower limits of steel pipes: φ20mm x 3.0mm

Display resolution: 0. 1mm or 0.01inch

Data output: /

Sound velocity: 1000m/s~9999m/s

Power supply: AA batteries (2pcs) 1.5V

Battery life: 100 hours without backlight

Sound speed: 1000m/s~9999m/s

Unit scales: mm/inch

Operating temperature: -10℃~ +300℃

Dimensions (mm): 152 ×74 ×35

Weight (g): 370

Standard Delivery

Main unit

Transducer 5PΦ10/90°

Transducer ZW5P for TIME®2132

Rubber jacket

Couplant

2 x Batteries AA 1.5V

Screwdriver

TIME certificate

Warranty card

Optional Accessory

Optional transducers

Printer TA230 with cable for TIME*2130

Dataview software for TIME*2130

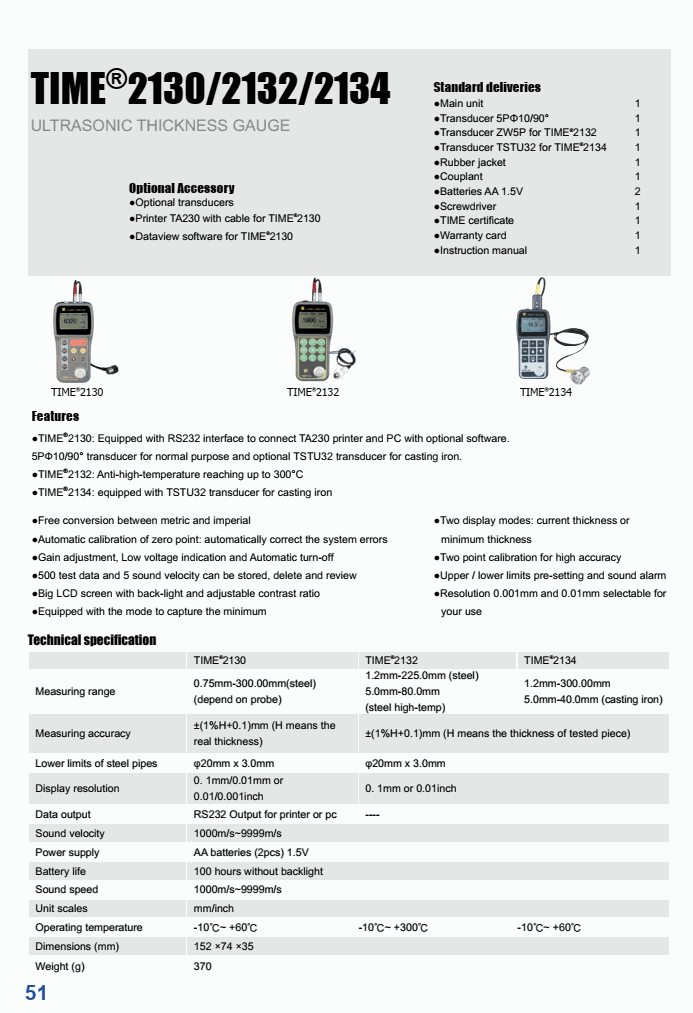

Datasheet
