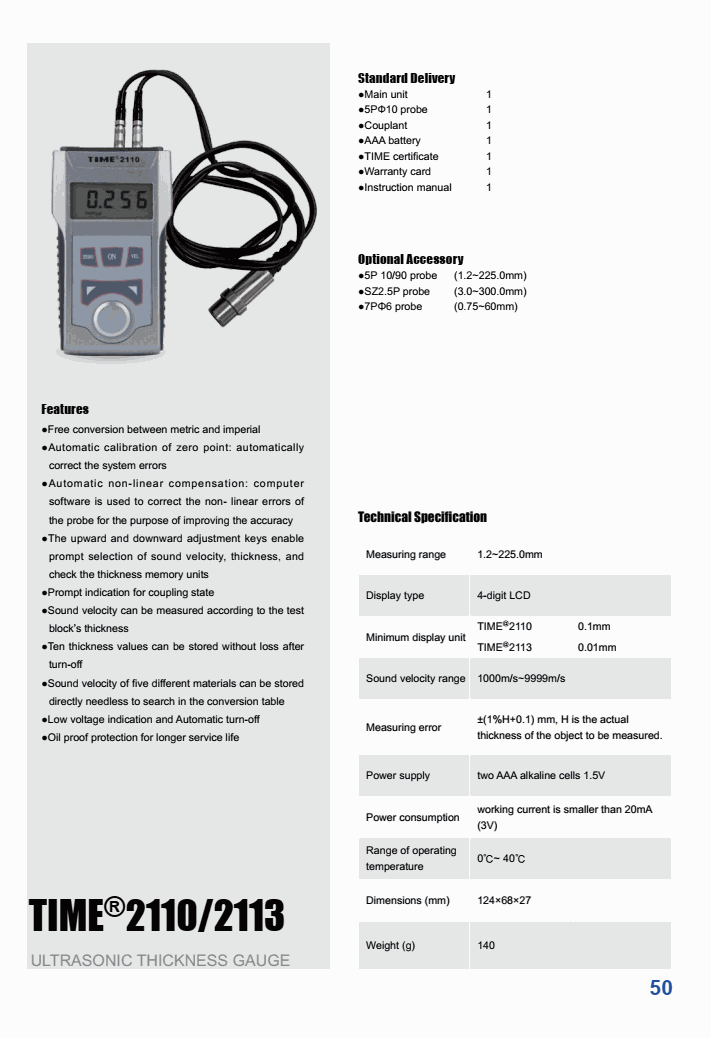

Specifications:
Measuring range: 1.2~225.0mm
Display type: 4-digit LCD
Minimum display unit: 0.1mm
Sound velocity range: 1000m/s~9999m/s
Measuring error: ±(1%H+0.1) mm, H is the actual thickness of the object to be measured.
Power supply: two AAA alkaline cells 1.5V
Power consumption: Working current is smaller than 20mA (3V)
Range of operating temperature: 0℃~ 40℃
Dimensions (mm): 124×68×27
Weight (g): 140
Standard Delivery
Main unit
5PФ10 probe
Couplant
AAA battery
TIME certificate
Warranty card
Optional Accessory
5P 10/90 probe (1.2~225.0mm)
SZ2.5P probe (3.0~300.0mm)
7PΦ6 probe (0.75~60mm)
