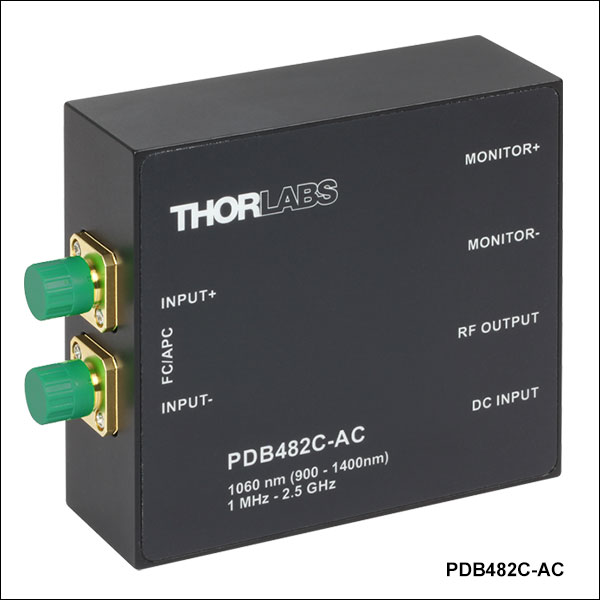

Detector
Detector Type: InGaAs/PIN
Optical Inputs: FC/APC
Internal Coupling Fiber: HI1060
Coupling Loss: <1.0 dB (<0.4 dB Typ.)
Operating Wavelength: Optimized for 1060 nm (900 - 1400 nm Range)
Responsivity (Typical): 0.72 A/W @ 1060 nm
Active Detector Diameter: 0.080 mm
Optical Back Reflection: <-40 dB
Photodiode Damage Threshol(d): 5 mW
RF OUTPUT
RF OUTPUT Bandwidth (3 dB): 30 kHz - 1.0 GHz
Common Mode Rejection Ratio: >25 dB (Typ. >30 dB)
RF OUTPUT Transimpedance Gain: 16 x 10^3 V/A(c)
RF OUTPUT Conversion Gain: 11.5 x 10^3 V/W @ 1060 nm(c)
RF OUTPUT Power at 1 dB Compression(c): +16.5 dBm Min +18 dBm Typ.
RF OUTPUT CW Saturation Power: See manual
RF OUTPUT Coupling: AC Coupling Only
RF OUTPUT Impedance: 50 Ω
Max Voltage Swing: See manual
Minimum NEP(d): 9.0 pW/Hz^1/2 (30 kHz to 100 MHz)
Overall Output Voltage Noise: <6.5 mVRMS
MONITOR Outputs
MONITOR Output Impedance: 200 Ω
MONITOR Output Bandwidth (3 dB): DC - 3 MHz
MONITOR Output Conversion Gain, High Z Load(b): 7.2 V/mW @ 1060 nm
MONITOR Output Voltage Swing, High Z Load: 10 V Max
Overall Output Voltage Noise: <0.65 mVRMS
DC Offset: < ±2 mV
General
Electrical Outputs: SMA
Included DC Power Supplye: ±12 V @ 250 mA (100/120/230 VAC, 50 - 60 Hz, Switchable)
Operating Temperature Range(f): 0°C to 40°C
Storage Temperature Range: -40 °C to 70°C
Dimensions (W x H x D): 85 mm x 80 mm x 30 mm (3.35" x 3.15" x 1.18")
Weight: 0.35 kg
(a) All technical data are valid at 23 ± 5°C and 45 ± 15% relative humidity (non-condensing).
(b) Values for transimpedance and conversion gain are lossless gain values [i.e. losses introduced by the FC/APC connectors (typically 0.15 to 0.35 dB) are not considered].
(c) For a 50 Ω load.
(d) For more information on NEP, please see Thorlabs' Noise Equivalent Power White Paper.
(e) A replacement power supply is available below.
(f) Non-Condensing.
