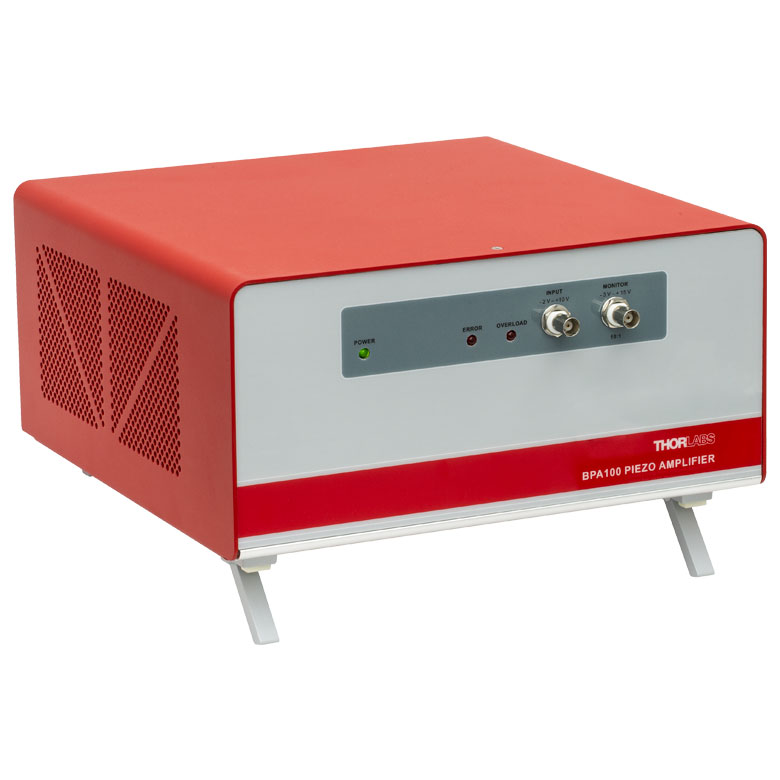

Piezoelectric Output
Voltage Output Range: -30 V to 150 V DC
Voltage Gain: 15
Output Current: 2.5 A Continuous (AC RMS), 10 A Peak
Voltage Stability: 100 ppm Over 24 hours (After 30 minutes Warm-Up Time)
Noise: <0.5 mV RMS (Bandwidth 20 Hz to 100 kHz)
Typical Piezo Capacitance: 1 to 10 µF (a)
Input
Input Type: Single Ended
Input Impedance: 10 kΩ
Input Voltage Range: -2 V to 10 V DC
Input Voltage for Full Range: 10 V DC ±2%
Monitor Output (BNC)
Output Voltage Range: -3 V to 15 V
Output Impedance: 220 Ω
Minimum Recommended Load Impedance: 10 kΩ
Short Circuit/Overload Protection: Yes
Temperature Sensor: Yes
Scaling Factor (HV Monitor): 1/10 (15 V for a Max Piezo Voltage of 150 V)
Input Power Requirements (IEC Connector)
Voltage: 85 - 264 VAC
Supply Current: <2 A (Ignoring Power on Transient)
Protection: Internal Fuse, Qty. 2, T3. 15 A H 250 V Anti-Surge Ceramic
General
Dimensions: 300.0 mm x 305.0 mm x 154.9 mm (11.81" x 12.01" x 6.10")
Weight: 6.0 kg (12.12 lbs)
Operating Temperature Range: 5°C to 40°C
(a) The unit will drive loads with a capacitance outside the stated range; see the load response graph on the manual. Generally a lower capacitance will result in a flat response at higher frequency. For high capacitance loads, the response starts to fall off at lower frequencies.
