Key Specifications(a)

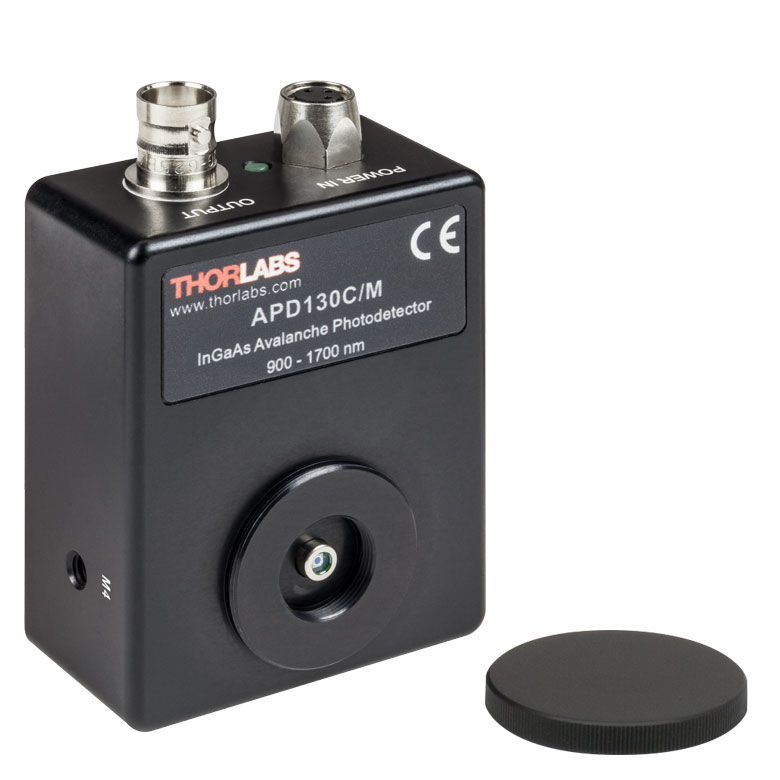

Detector Type: InGaAs APD
Wavelength Range: 900 - 1700 nm
Output Bandwidth (3 dB): DC - 50 MHz
Active Area Diameter: 0.2 mm
Typical Max Responsivity: 9 A/W @ 1500 nm (M = 10)
Transimpedance Gain: 50 kV/A (50 Ω Termination). 100 kV/A (High-Z Termination)
Max Conversion Gain(b): 0.9 × 10^6 V/W
M Factor: 10
M Factor Temperature Stability(c): ±2% (Typical); ±3% (Max)
Saturation Power (CW): 4.2 µW
Minimum NEP (DC - 50 MHz)(d): 0.46 pW/√Hz
Dimensions (W x H x D): 2.97" x 2.00" x 1.08"
(a) For a complete list of specifications and responsivity graphs, please see the manual. Data are valid at 23 ± 5 °C and 45% ± 15% relative humidity (non-condensing).
(b) At the Peak Responsivity Wavelength
(c) Within the 23 ± 5°C temperature range.
(d) For more information on how NEP is calculated, please see Thorlabs' Noise Equivalent Power White Paper
