Power: 220/110V 50/60 Hz
Weight: 110 kg
Dimensions: 680 x 580 x 1650 mm (L x W x H)
Test capacity: 2500 N
Load measurement accuracy: +/-2% (1% ~ 100%FS)
Resolution of load: 0.1 N
Displacement resolution and accuracy: 0.01 mm
Speed range and accuracy: 0.01 ~ 1000 mm/min, error ± 2%
Sample holder pneumatic clamping
Built-in intelligent active force and displacement alarm system
High-resolution digital closed-loop controller
Operating temperature range 0 to 38℃
Storage temperature range -10 to 45℃
Humidity range 10% to 90% non-condensing, web bulb method
Power must be free of sparks and surges exceeding 10% of the nominal voltage
Standards: ISO 13934.1/2, ISO 13935.1/2, ISO 9073.3/4, ASTM D5034 / 5035

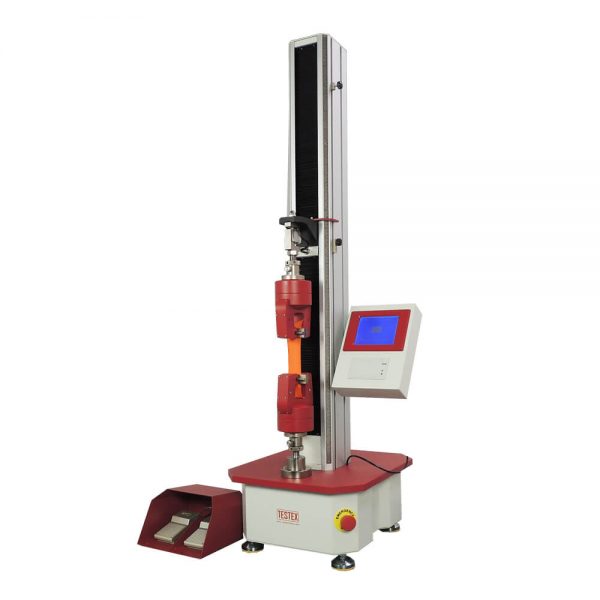

Textile Tensile Testing Machine is designed to test a wide range of tension, bursting, tear, elongation, constant load, elastic, thread slip, peeling and other mechanical properties.
A PC-controlled machine equipped with motor and quality ball-screw for ideal and smooth control.
The machine talks directly with a PC running a data analysis software package in English or Chinese, via a high-speed RS232. Equipped with a quality load-cell with an accuracy of 0.2% of the applied load value, from 1% to 100% of the load-cell capacity.
The machine has a huge assortment of specimen grips and fixtures available, allowing the wide range of test methods. Automatic pneumatic fixtures / clamps are offered.
