Manufacturer: TES

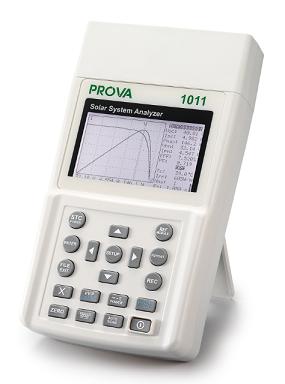

Model: Prova 1011
Original: Taiwan
-I-V Curve test for Solar System
-Includes moisture-proof Remote Solar Detector
-Prova 1011 and Solar Detector connected by Bluetooth
-Intelligent Test Logic enables unattended testing
-Autoscan for maximum solar system power, Pmax
-Measurement capability is 12000W, 1000V at 12A
-Irradiance and temperature can be continuously recorded
-I-V curves can be recorded using Data Logging function
-Each data point is displayed by I-V curve with cursor
-USB Cable and Software for PC or Laptop
-Optional AC Power Clamp and DC Current Probe
Electrical Specifications
-DC Voltage measurement: (23°C ± 5°C, Irradiance ≥ 800 W/m2, 4-wire measurement, Max. power 12000W)
+Range: 1 ∼ 1000V
+Resolution: 0.01V / 0.1V / 1V
+Resolution: ±1% ±(1% of Vopen ±0.1V)
-DC Current Measurement:
+Range: 0.1 ∼ 12A
+Resolution: 1mA / 10mA
+Accuracy: ± 1% ± (1% of Ishort ±9 mA)
-DC Current simulation:
+Range: 0.1 ∼ 12A
+Resolution: 1mA / 10mA
+Accuracy: ± 1% ± 9 mA
-Irradiance Measurement:
+Range: 0 ∼ 2000 W/m2
+Resolution: 1 W/m2
+Accuracy: ± 3% ± 20 dgts
-Temperature Measurement:
+Range: -22 °C ∼ 85 °C
+Resolution: 0.1 °C
+Accuracy: ± 1% ± 1 °C
General Specifications
-Standards CE CAT II 1000V / CAT III 300V
-Battery: Rechargeable Lithium Battery (3400mAh)
-Memory Size: 512K Bytes. (3980 Mod files or 320 REC files or 3980 PWR files or 3980 IRR files)
-AC Power Adaptor: AC 100 ∼ 240V input; DC 15V / 1∼3A output
-Dimensions: (257 x 155 x 57)mm
-Weight: 1525g (batteries included)
-Operating environment: 5°C ∼ 50°C, 85% RH
-Temperature Coefficient: 0.1% of full scale / °C (<18°C or >28°C)
-Storage environment: -20°C ∼ 60°C, 75% RH
