◈ Mechanical Specifications
[TC-5930A]
Dimensions

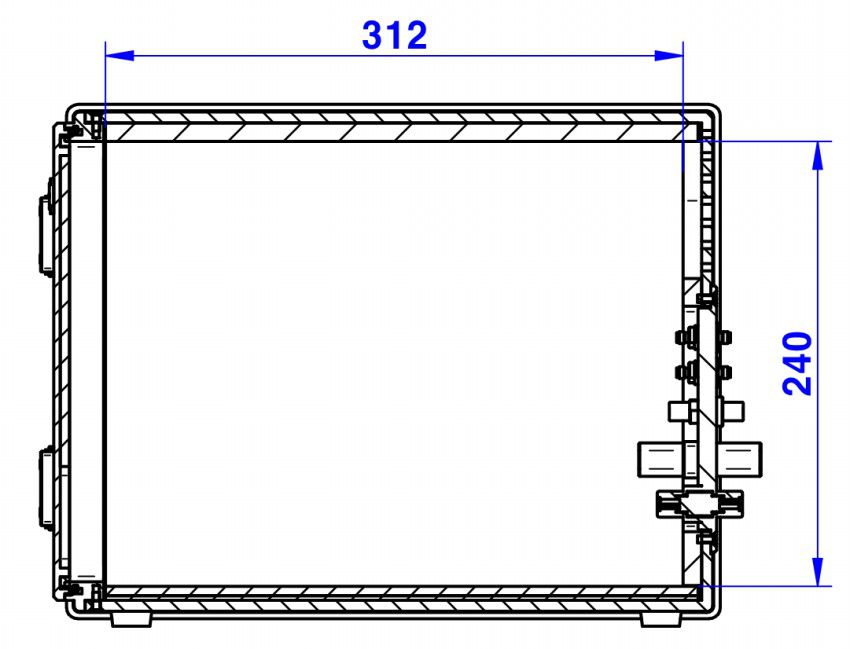

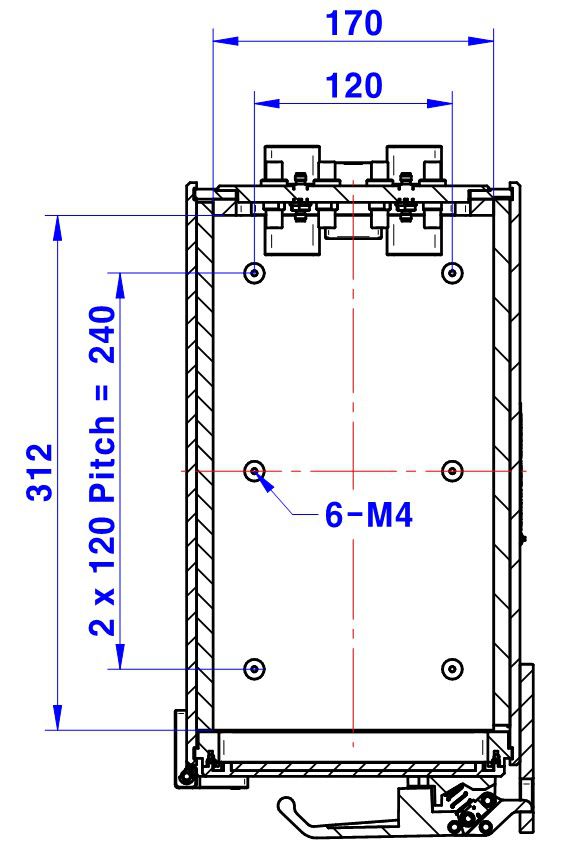

- Inside : 170(W) x 312(D) x 240(H) mm

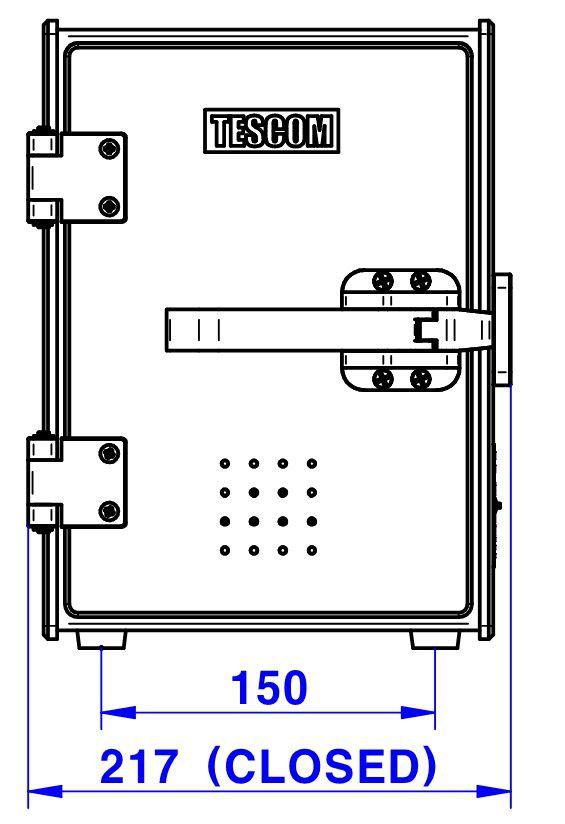

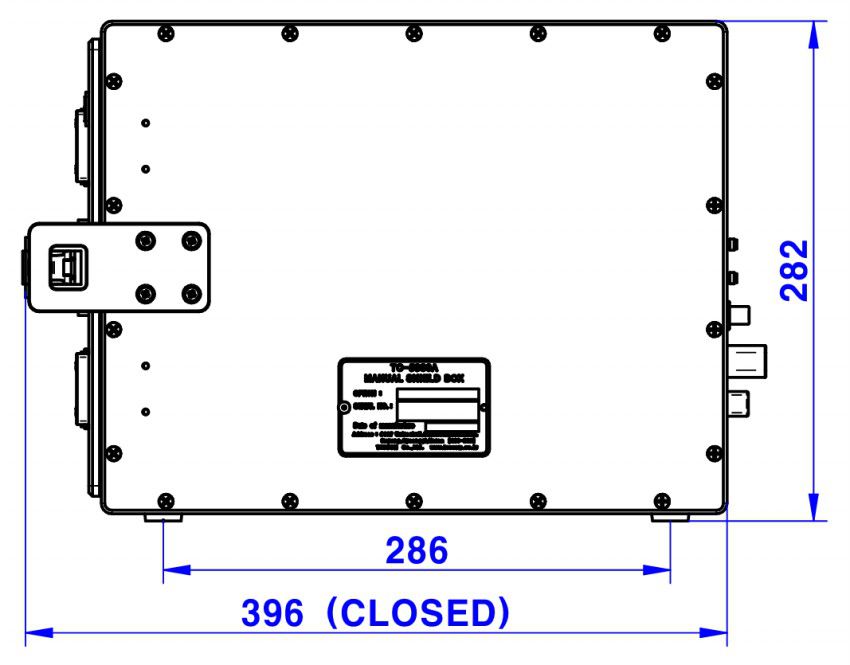

- Outside : 217(W) x 396(D) x 282(H) mm

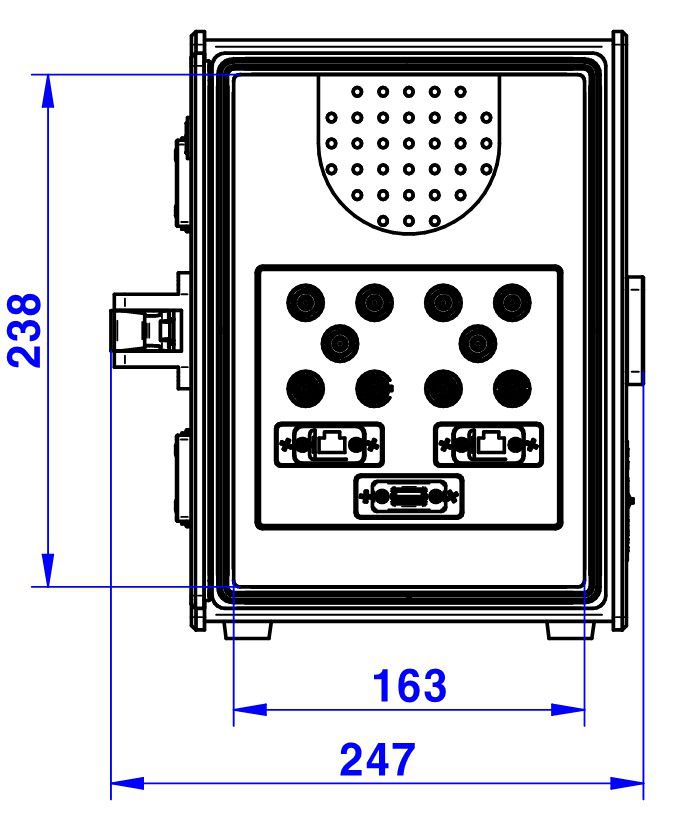

- Door : 163(W) x 238(H) mm
Weight : Approx. 9 kg
Packing (The size or weight of a package may vary on how to pack a package.)
- Size : 370(W) x 510(D) x 400(H) mm
- Weight : Approx. 11 kg

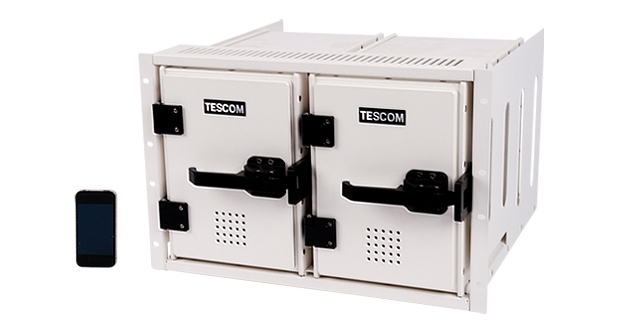

[TC-5930AR]
Dimensions
- Inside : 170(W) x 312(D) x 240(H) mm
- Outside : 483(W) x 488(D) x 310(H) mm
- Door : 163(W) x 238(H) mm
Weight : Approx. 24 kg
Packing (The size or weight of a package may vary on how to pack a package.)
- Size : 640(W) x 690(D) x 440(H) mm
- Weight : Approx. 31 kg
◈ Typical RF Shielding
The shielding effectiveness below is measured when the blank panel is mounted; other I/O interface panel results a different shielding effectiveness of the shield box.
Frequency / Shielding effectivness (dB)
- 100 to 2000 MHz : > 80 dB
- 2000 to 3000 MHz : > 70 dB
- 3000 to 6000 MHz : > 60 dB
