Direct access to our certified experts
Rotation axis : Elevation and Azimuth (Automated / Homing)
Rotation Range
Theta - Axis(EL) : 0° ~ 360°
Phi - Axis(AZ) : 0° ~ 180
Rotation Speed
Elevation: 12 ~ 13 RPM
Azimuth: 8 ~ 9 RP
Positioning Accuracy
Elevation < 1°
Azimuth < 1°
Max. DUT Weight : 0.5kg
Max. DUT Size (Length x Width x Height) : 162mm x 76.5mm x 8.8mm
Control Interface : USB, RS-232C
Power Supply : 24V DC Adapter
Size : 438(L) x 400(W) x 427(H) mm
Weight : approx. 18 kg
Datasheet

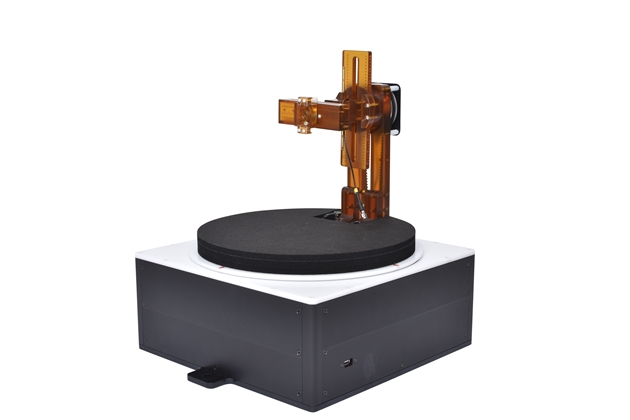

◈ Key Features
Rotation fixture for 3D radiation pattern measurement
Cradle Base and Cradle rotate, 2-axis rotation system.
Mechanically designed to avoid cable twist using slip ring and rotary joint
Each part is designed and manufactured considering permittivity.
Tick mark on the Cradle Base.

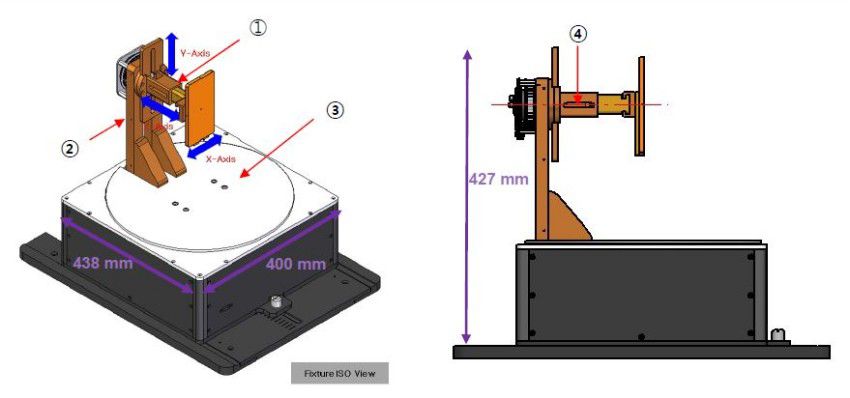

◈ Rotator Dimensions
① Cradle
② Cradle Support
③ Cradle Base
④ DUT Holder

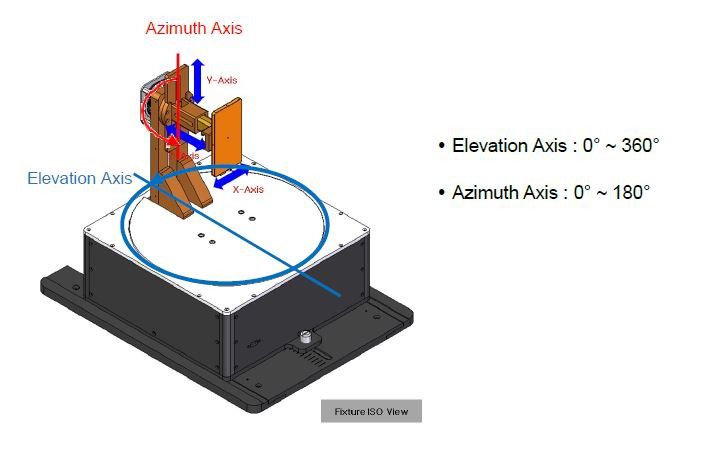

◈ Rotation Axis

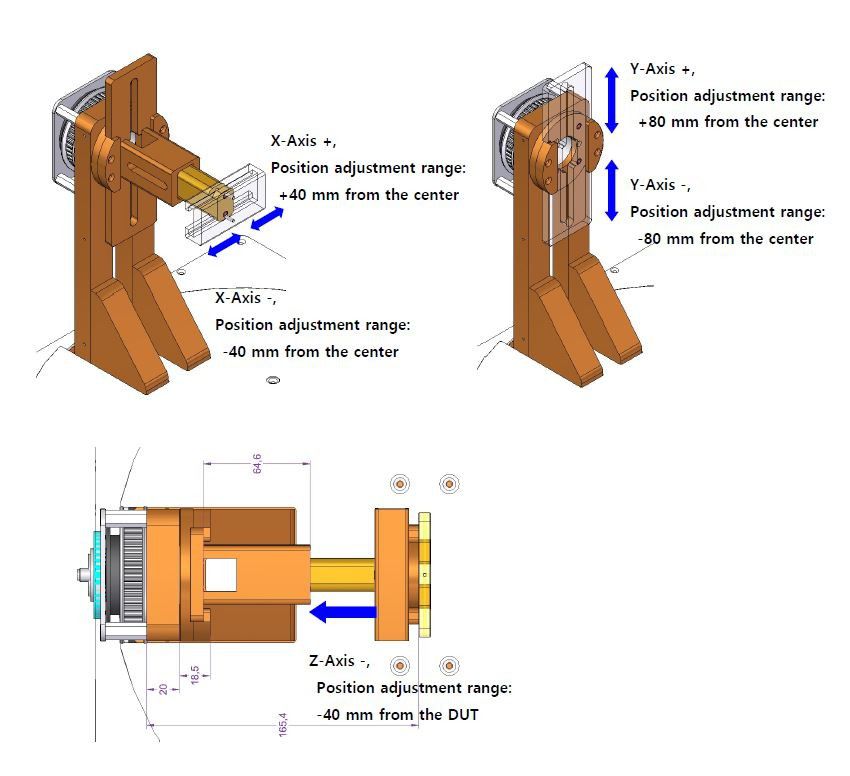

◈ Optional DUT Holder
