◈ Mechanical Specifications
Basic I/O connectors
RF connectors: three(3) N(f) outside and SMA(f) inside
Dimensions
- Inside : 802(W) x 762(D) x 644(H) mm
- Outside : 916(W) x 940(D) x 871(H) mm
- Door : 588(W) x 588(H) mm
Weight : Approx. 73 kg
Packing (The size or weight of a package may vary on how to pack a package.)
- Size : 1100(W) x 1100(D) x 1030(H) mm
- Weight : Approx. 93 kg
◈ Typical RF Shielding
The shielding effectiveness below is measured when the blank panel is mounted; other I/O interface panel results a different shielding effectiveness of the shield box.
Frequency / Shielding effectivness (dB)
- 100 to 2000 MHz : > 70 dB
- 2000 to 3000 MHz : > 70 dB
- 3000 to 6000 MHz : > 60 dB
◈ Absorber Reflectivity
Measured the reflected signal from the absorber with metal plate using the VNA.
Frequency / Reflectivity (dB)
- 500 to 2000 MHz : 15 dB(Typ.)
- 2000 to 6000 MHz : 20 dB(Typ.)
Datasheet

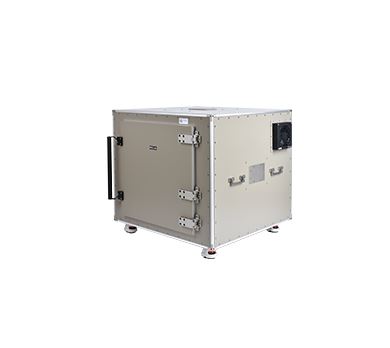

Key Features
◈ Reliable High RF Shielding up to 6 GHz
◈ Specifically designed for various types of Large Device
◈ Side Cooling Fans
◈ EMI filters on all Data ports
◈ Easy Opening/Closing of Door
◈ Customizable Data connections
Dimensions

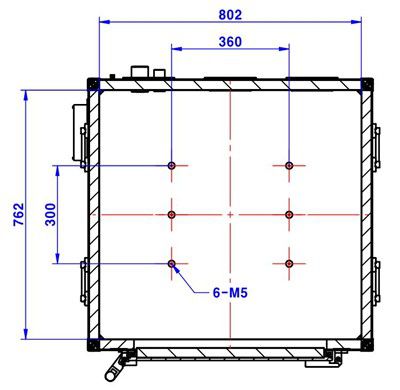

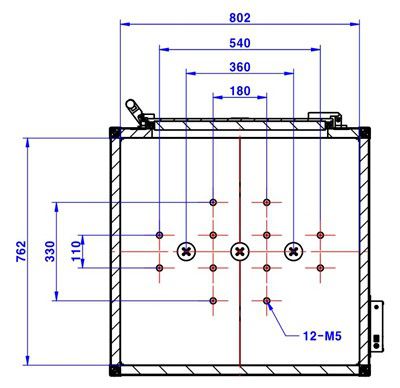

TC-5977A Inner Dimension

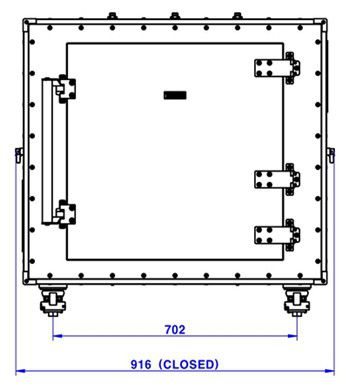

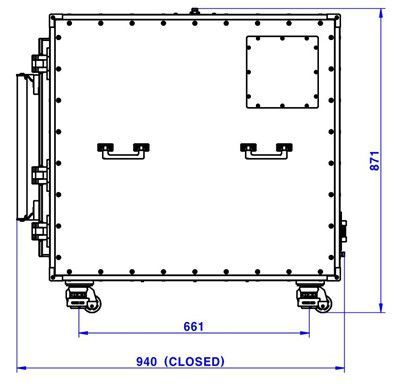

TC-5977A Outer Dimension

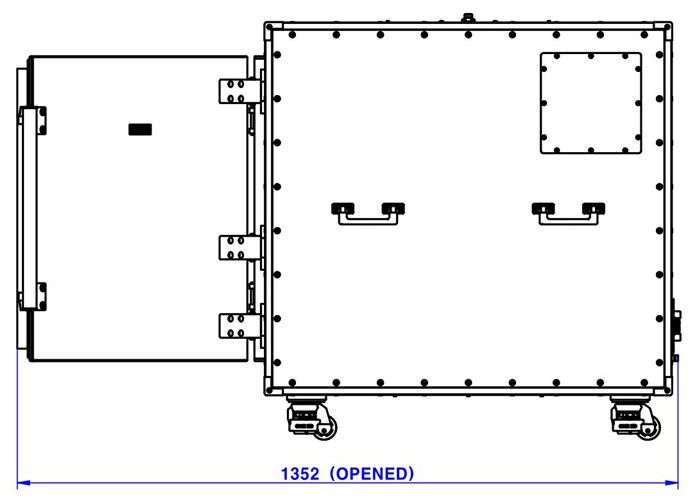

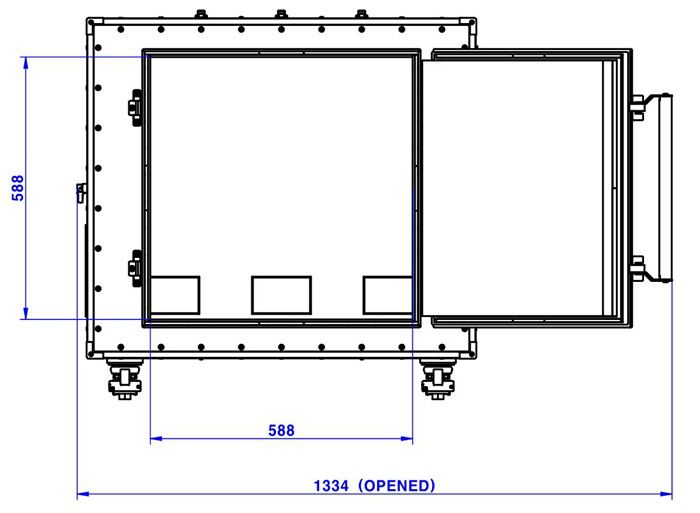

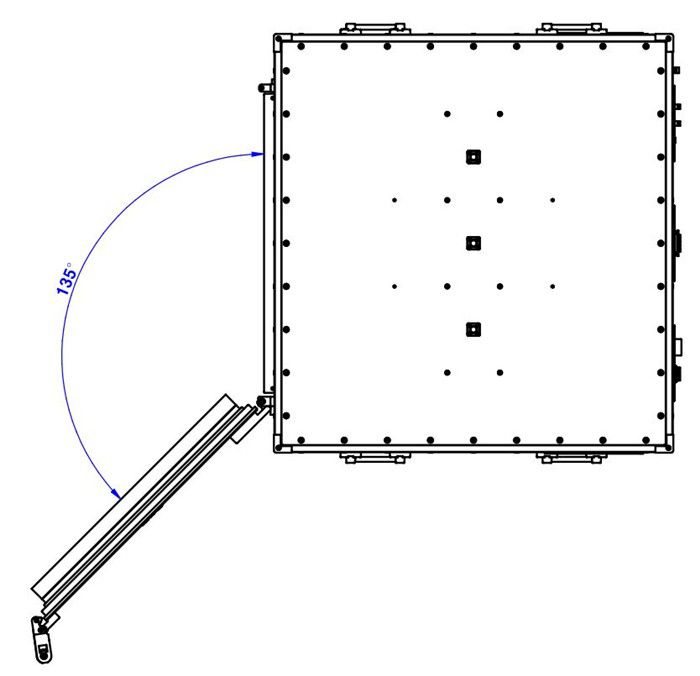

TC-5977A Door Opened
