Interface
Type: HSMC
Control IO-Standard Voltge: 2.5V
Power Source: 3.3V and 12V from HSMC
LCD Display
7-inch TFT LCD with pixel resolution of 800*480
16 million colors (8-bit RGB)
LED backlight
5-Megapixel Digital Image Sensor
2,592H x 1,944V active pixels with Bayer color arrangement
Programmable frame rate up to 70FPS (VGA)
Snapshot-mode mode to take frames on demand
Simple two-wire serial control interface
Digital Accelerometer
Up to 13-bit resolution at +/- 16g
SPI (3- and 4-wire) digital interface
Flexible interrupts modes
Ambient Light Sensor
Precise illumination measurement under diverse lighting conditions
Programmable interrupts
16-bit digital output with I2C fast-mode at 400 kHz
Programmable analog gain and Integration time
50/60Hz lighting ripple rejection

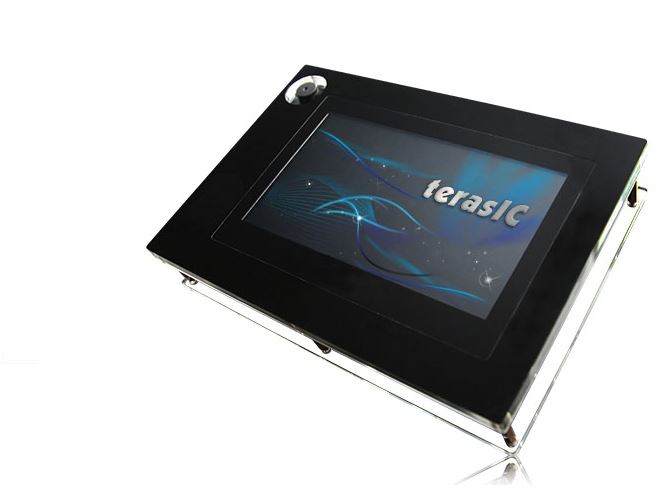

The Video and Embedded Evaluation Kit - Multi-Touch for SoCKit Upgrade Kit( VEEK-MT-SoCKit Upgrade Kit ) offers customers who already own a SoCKit board a brand new integrated platform to develop various embedded applications. We provide simple and straightforward installation guidelines for users to assemble their already owned SoCKit with this upgrade kit.
With upgrade kit installed, this bundle also known as VEEK-MT-SoCKit features a SoCKit development board targeting the Cyclone V SoC FPGA, as well as a capacitive LCD multimedia color touch panel which natively supports multi-touch gestures. A 5-megapixel digital image sensor, ambient light sensor, and 3-axis accelerometer make up the rich feature-set.
The VEEK-MT-SoCKit upgrade kit for SoCKit interfaces SoCKit board through HSMC interface. The kit provides customized HSMC cable and acrylics for SoCKit and VEEK-MT to be assembled in a cubic form. The kit also provides useful reference designs for software developers to build comple embedded systems.
