1. Altera Stratix® V GX FPGA (5SGXEA3K2F40C3)
On-Board USB Blaster II or JTAG header for FPGA programming
Fast passive parallel (FPPx32) configuration via MAX II CPLD and flash memory
2. General user input / output:
4 LEDs
1 LED Array
4 push-buttons
4 slide switches
3. On-Board Clock
50MHz Oscillator
Programmable oscillators Si570 and CDCM61004
4. Memory
SSRAM
FLASH
5. Communication Ports
Four SFP+ connectors
One SATA host port
One SATA device port
PCI Express (PCIe) x8 edge connector
One RS422 transceiver with RJ45 connector
One HSMC Connector (voltage levels: 2.5/1.8/1.5V)
6. System Monitor and Control
Temperature sensor
Fan control
7. Power
PCI Express 6-pin power connector, 12V DC Input
PCI Express edge connector power
8. Mechanical Specification
PCI Express standard height and half-length

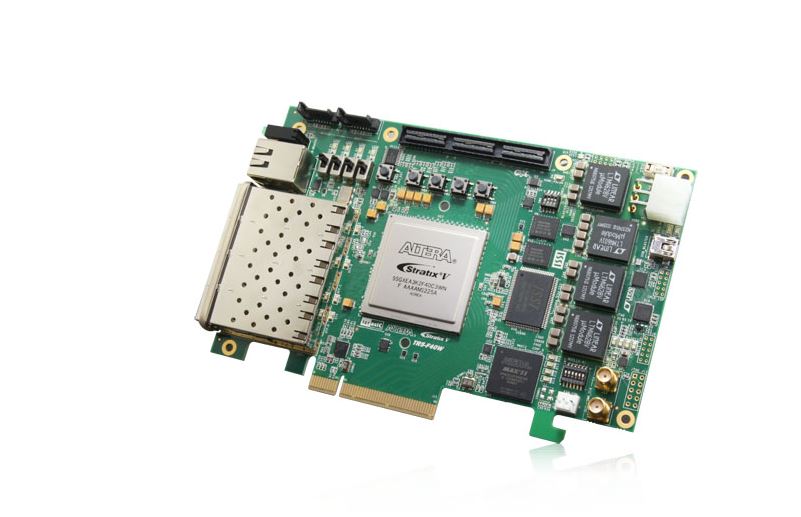

The Terasic TR5-F40W Stratix V GX FPGA Development Kit provides the ideal hardware platform for developing high-performance and high-bandwidth application. With a standard-height, half-length form-factor package, the TR5-F40W is designed for the most demanding high-end applications, empowered with the top-of-the-line Altera Stratix V GX, delivering the best system-level integration and flexibility in the industry.
The Stratix® V GX FPGA features 340K logic elements and integrated transceivers that transfer at a maximum of 12.5 Gbps, allowing the TR5-F40W to be fully compliant with version 3.0 of SATA, version 3.0 of the PCI Express standard, as well as allowing an ultra low-latency, straight connections to four external 10G SFP+ modules. Not relying on an external PHY will accelerate mainstream development of network applications enabling customers to deploy designs for a broad range of high-speed connectivity applications. An HSMC expansion port also allows users to connect custom daughter cards such as those found on cards.terasic.com. The feature-set of the TR5-F40W fully supports all high-intensity applications such as low-latency trading, cloud computing, high-performance computing, data acquisition, network processing, and signal processing.
