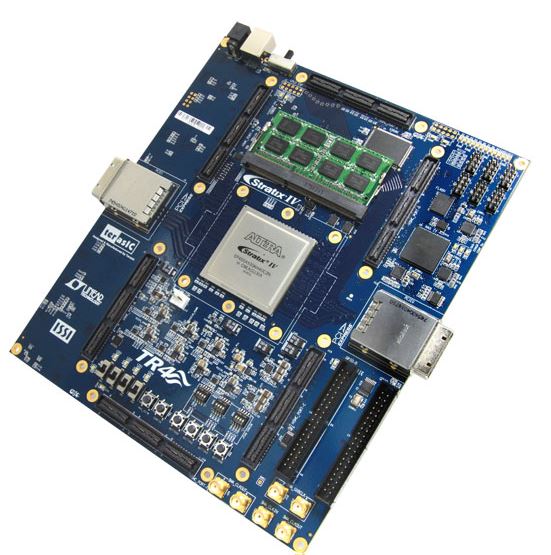

Stratix IV GX EP4SGX230
228,000 logic elements (LEs)
17,133 total memory Kbits
1,288 18x18-bit multipliers blocks
2 PCI Express hard IP blocks
744 user I/Os
8 phase locked loops (PLLs)
Stratix IV GX EP4SGX530
531,200 logic elements (LEs)
27,376 total memory Kbits
1,024 18x18-bit multipliers blocks
4 PCI Express hard IP Blocks
744 user I/Os
8 phase locked loops (PLLs)
FPGA Configuration
MAXII CPLD EPM2210 System Controller and Fast Passive Parallel (FPP) configuration
On-board USB Blaster for use with the Quartus II Programmer
Programmable PLL timing chip configured via MAX II CPLD
Supports JTAG mode
Memory Devices
64MB Flash with a 16-bit data bus
2MB SSRAM (512K x 32)
DDR3 SO-DIMM Socket
Up to 8GB capacity
Maximum memory clock rate at 533MHz
Theoretical bandwidth up to 68Gbps
Buttons, Switches and LEDs
4 user-controllable LEDs
4 buttons for user-defined inputs
4 slide switches for user-defined inputs
On-Board Clocks
50MHz oscillator
SMA Connectors
SMA connector pair for differential clock inputs
SMA connector pair for differential clock outputs
SMA connector for clock output
SMA connector for external clock input
Two PCI Express x4 Connectors
Support connection speed of Gen1 at 2.5Gbps/lane to Gen2 at 5.0Gbps/lane
High-speed transceiver channels up to 6.5 Gbps
Support downstream mode
Six 172-pins High Speed Mezzanine Card (HSMC)
6 HSMC connectors
Configurable I/O standards - 1.5V, 1.8V, 2.5V, 3.0V
Total of 16 high-speed transceivers up to 6.5 Gbps
Among HSMC Port A to D, there are 55 true LVDS TX channels to 1.6Gbps and 17 emulated LVDS TX channels up to 1.1Gbps
Two 40-pin Expansion Headers
72 FPGA I/O pins; 4 power and ground lines
Configurable I/O standards - 1.5V, 1.8V, 2.5V, 3.0V
Shares pins with HSMC Port
Power
Standalone DC 19V input
