1. FPGA Device
Cyclone V SX SoC—5CSXFC6D6F31C6N
110K LEs, 41509 ALMs
5140 M10K memory blocks
6 FPGA PLLs and 3 HPS PLLs
2 Hard Memory Controllers
3.125G Transceivers
2. ARM®-based hard processor system (HPS)
925 MHz, A Dual-Core ARM Cortex™-A9 MPCore™ Processor
512 KB of shared L2 cache
64 KB of scratch RAM
Multiport SDRAM controller with support for DDR2, DDR3, LPDDR1, and LPDDR2
8-channel direct memory access (DMA) controller
3. Configuration and Debug
Quad Serial Configuration device – EPCQ256 for FPGA
On-Board USB Blaster II (mini USB type B connector)
4. Memory Devices
1GB (2x256MBx16) DDR3 SDRAM on FPGA
1GB (2x256MBx16) DDR3 SDRAM on HPS
64MB QSPI Flash on HPS
Micro-SD Card Socket on HPS
EPCQ256 Flash on FPGA
5. Communication
USB 2.0 OTG (ULPI interface with mini USB type AB connector)
USB to UART (mini USB type B connector)
10/100/1000 Ethernet
6. Connectors
One HSMC (8-channel Transceivers, Configurable I/O standards 1.5/1.8/2.5/3.3V)
One LTC connector (One Serial Peripheral Interface (SPI) Master ,one I2C and one GPIO interface )
7. Display
24-bit VGA DAC
128x64 dots LCD Module with Backlight
8. Audio
24-bit CODEC, Line-in, line-out, and microphone-in jacks
9. Switches, Buttons and LEDs
8 User Keys (FPGA x4 ; HPS x 4)
8 User Switches (FPGA x4 ; HPS x 4)
8 User LEDs (FPGA x4 ; HPS x 4)
2 HPS Reset Buttons (HPS_RSET_n and HPS_WARM_RST_n)
10. Sensors
G-Sensor on HPS
Temperature Sensor on FPGA
11. Power
12V DC input

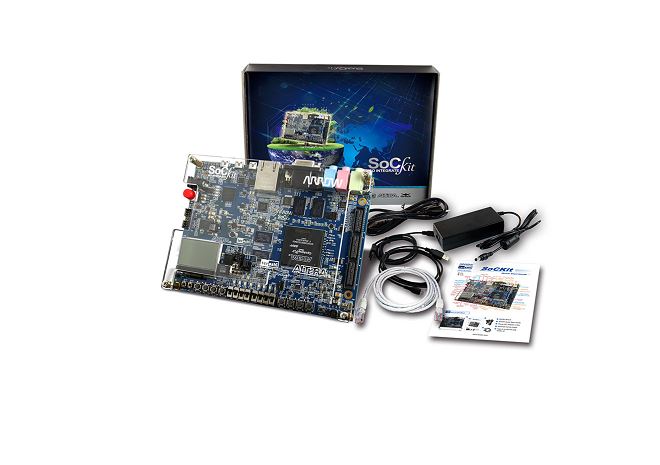

12. Kit Contents
SoCKit Board
SoCKit Quick Start Guide
Power DC Adapter (12V)
Ethernet Cat 5e Cable
Mini usb cable x2
