1. FPGA Device
Cyclone V SoC 5CSEMA5F31C6 Device
Dual-core ARM Cortex-A9 (HPS)
85K Programmable Logic Elements
4,450 Kbits embedded memory
6 Fractional PLLs
2 Hard Memory Controllers
2. Configuration and Debug
Serial Configuration device – EPCS128 on FPGA
On-Board USB Blaster II (Normal type B USB connector)
3. Memory Device
64MB (32Mx16) SDRAM on FPGA
1GB (2x256Mx16) DDR3 SDRAM on HPS
Micro SD Card Socket on HPS
4. Communication
Two Port USB 2.0 Host (ULPI interface with USB type A connector)
USB to UART (micro USB type B connector)
10/100/1000 Ethernet
PS/2 mouse/keyboard
IR Emitter/Receiver
5. Connectors
Two 40-pin Expansion Headers (voltage levels: 3.3V)
One 10-pin ADC Input Header
One LTC connector (One Serial Peripheral Interface (SPI) Master ,one I2C and one GPIO interface )
6. Display
24-bit VGA DAC
7. Audio
24-bit CODEC, Line-in, line-out, and microphone-in jacks
8. Video Input
TV Decoder (NTSC/PAL/SECAM) and TV-in connector
9. ADC
Sample rate: 500 KSPS
Channel number: 8
Resolution: 12 bits
Analog input range : 0 ~ 4.096 V
10. Switches, Buttons and Indicators
4 User Keys (FPGA x4)
10 User switches (FPGA x10)
11 User LEDs (FPGA x10 ; HPS x 1)
2 HPS Reset Buttons (HPS_RST_n and HPS_WARM_RST_n)
Six 7-segment displays
11. Sensors
G-Sensor on HPS
12. Power
12V DC input
13. Kit contents

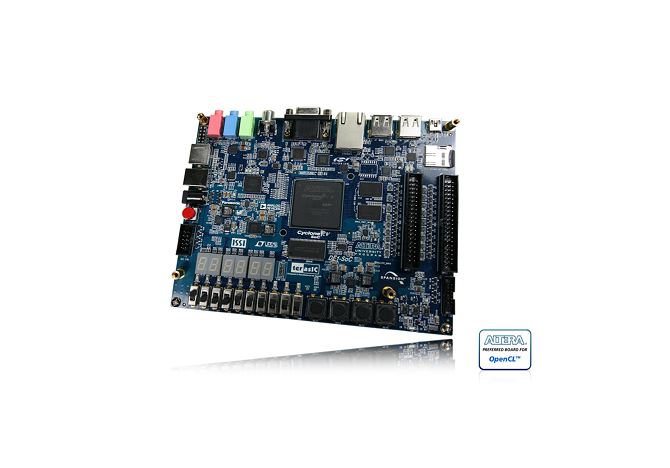

DE1-SoC Board
DE1-SoC Quick Start Guide
Type A to B USB Cable
Type A to Mini-B USB Cable
Power DC Adapter (12V)
