Terasic Altera Arria V GT FPGA Development Kit

Name: Terasic Altera Arria V GT FPGA Development Kit
Brand: Terasic

ManufacturerTerasic(View more products from this manufacturer)

ModelAltera Arria V GT

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Unit 1: Arria V GT FPGA: 5AGTD7K3F40I3N
    Memory
        1,152-MB x72 DDR3 SDRAM
        4.5-MB (1 Mb x 36) QDR II+ SRAM
        1-Gb sync flash (x16)
    Communication ports
        PCI Express® (PCIe® ) x8 edge connector
        HSMC Port A (Eight transceiver channels)
        USB 2.0
        Gbps Ethernet
        Chip-to-chip bridge with 29 LVDS inputs and 29 LVDS outputs, and x8 transceivers
        Two SFP+ channel
        Bull's Eye connector (Three 10-Gbps transceiver channel)
        SMA connector (One 10-Gbps transceiver channel)
    Configuration
        JTAG
        Fast passive parallel (FPP) parallel flash loader (PFL)
    Buttons, switches, LEDs, and displays
        One CPU reset push button
        Three user push buttons
        Eight dual in-line package (DIP) switches
        16 user LEDs (eight bi-color diodes)
        Three PCIe LEDs
        Three HSMA Status LEDs
        16x2 character LCD
Unit 2: Arria V GT FPGA: 5AGTD7K3F40I3N
    Memory
        x64 DDR3 SDRAM soft controller (or x32 hard intellectual property (IP) controller)
    Communication ports
        HSMC Port B (Four transceiver channels)
        FMC Port (Ten transceiver channels)
        Chip-to-chip bridge with 29 LVDS inputs and 29 LVDS outputs, and x8 transceivers
        One serial digital interface (SDI) channel
        Bull's Eye connector (One 6-Gbps transceiver channel)
        Bull's Eye connector (One 10-Gbps transceiver channel)
        SMA connector (One 10-Gbps transceiver channel)
    Configuration
        JTAG
        FPP PFL
    Buttons, switches, LEDs, and displays
        One CPU reset push button
        Three user push buttons
        Eight DIP switches
        16 user LEDs (eight bi-color diodes)
Miscellaneous
    EPM2210GF324 system controller
    EPM570GM100 on-board USB-Blaster™ II download cable
Clocking
    50 MHz and 148.5-MHz oscillator
    100 MHz and four 4 output programmable oscillators
    SMA input (LVPECL)
Power
    Laptop DC input
    PCIe edge connector
System monitoring
    Power (voltage, current, and wattage)—per unit per rail

Catalog

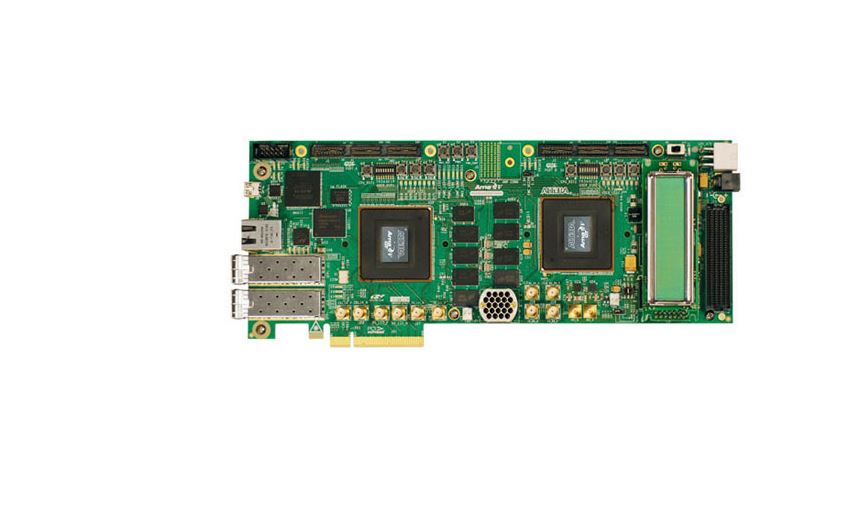

The Altera^® Arria^® V GT FPGA Development Kit provides a complete design environment that includes all the hardware and software that you need to develop full FPGA designs and test them within a system environment. The development kit is RoHS compliant, and includes the following features:

Two FPGAs for system-level design
- Arria V GT FPGA: 504K logic elements (LEs), F1517 package, 36 6G tranceivers, and I3 speed grade
Three I/O expansion slots: two high-speed mezzanine cards (HSMCs) and one FPGA mezzanine card (FMC)
2 GB of DDR3 SDRAM memory, 4.5 MB of QDR II+ memory, and 1 Gb of flash memory
Two SFP+ connections
SMAs and the new Samtec Bull's Eye connectors
Ability to measure individual power rails on each chip
