Mô tả

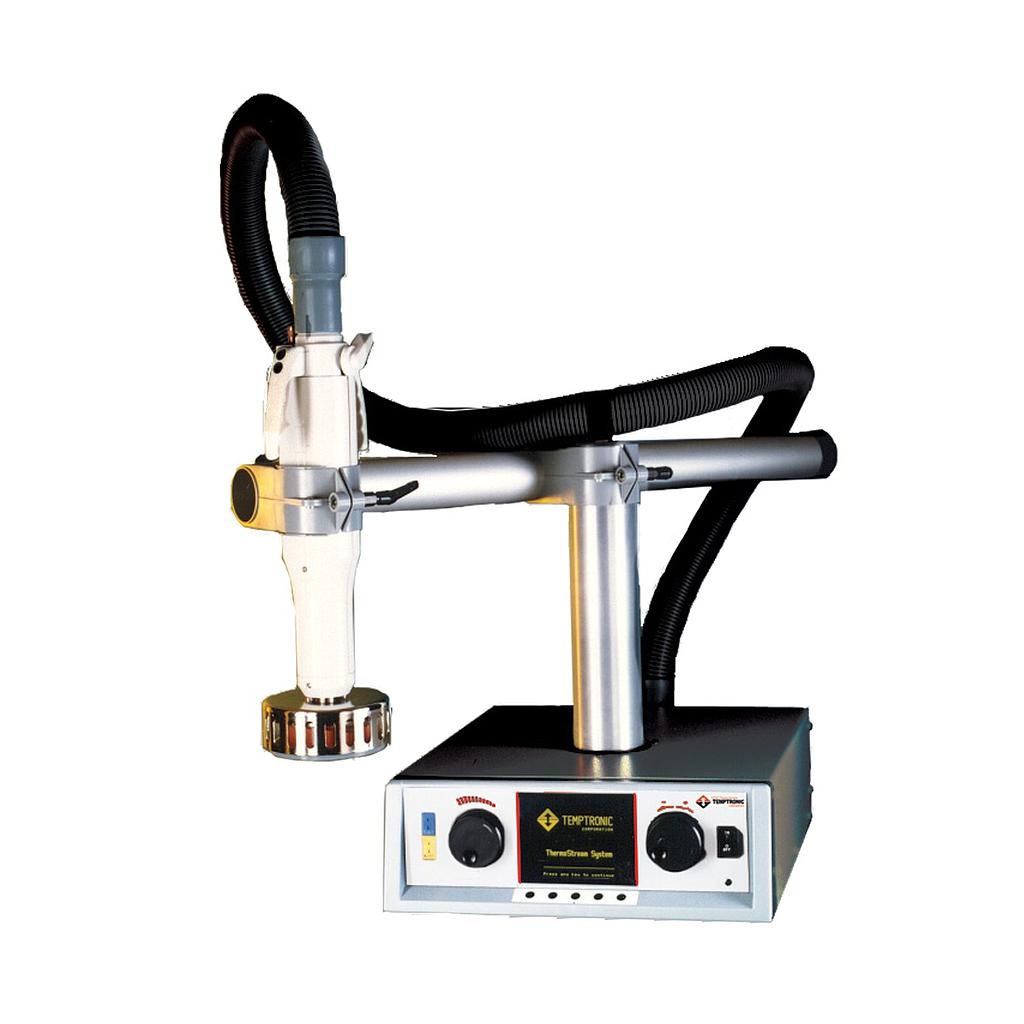

Advanced Temperature Source for fast and precise thermal conditioning of components, parts, hybrids, modules, subassemblies, and printed circuit boards. Capable of low temperatures without the use of Liquid Nitrogen (LN2) or Liquid Carbon Dioxide (LCO2)
Performance
Temperature Range: -20 ~ +225°C (50/60Hz) No LN2 or LCO2 Required
Transition Rates
Heating: 0 to +125°C, <3 min
Cooling: +125 to 0°C, <4 min
System Airflow Output: 4 ~ 10 scfm (1.9 ~ 4.7 l/s) Continuous
Temperature control
Temperature Display & Resolution: +/- 0.1°C
Temperature Accuracy: 1.0°C (when calibrated against NIST standard)
DUT Temperature Control: Proprietary control algorithm enables DUT temperature to be directly controlled
DUT Sensor Ports: Thermocouples (type T & K)
Power: 200 - 250 VAC (230V nominal), 50/60Hz 30 amp, 1phase
Compressed air
Clean, Dry Air (CDA): Filtered to 5 micron particulate contamination.
Oil Content: <0.1 ppm, by weight, filtered to 0.01 micron oil contaminant.
Dewpoint: ambient to -40°C
Air Supply Pressure: 5.6 to 7kg /cm2 (80 to 90 PSIG), 5.6 kg/cm (90 PSIG) nominal
Total Air Flow Rate Required: 4.0 to 6.2 l/s (8-13 scfm), 4.5 l/s (9 scfm) nominal
Air Supply Temperature: +20°C to +28°C; +23°C nominal
Operating environment
Operating Temperature: +20°C ~ +28°C; +23°C nominal
Humidity: 0 ~ 60%; 45% nominal
Noise Level: <70dBA
