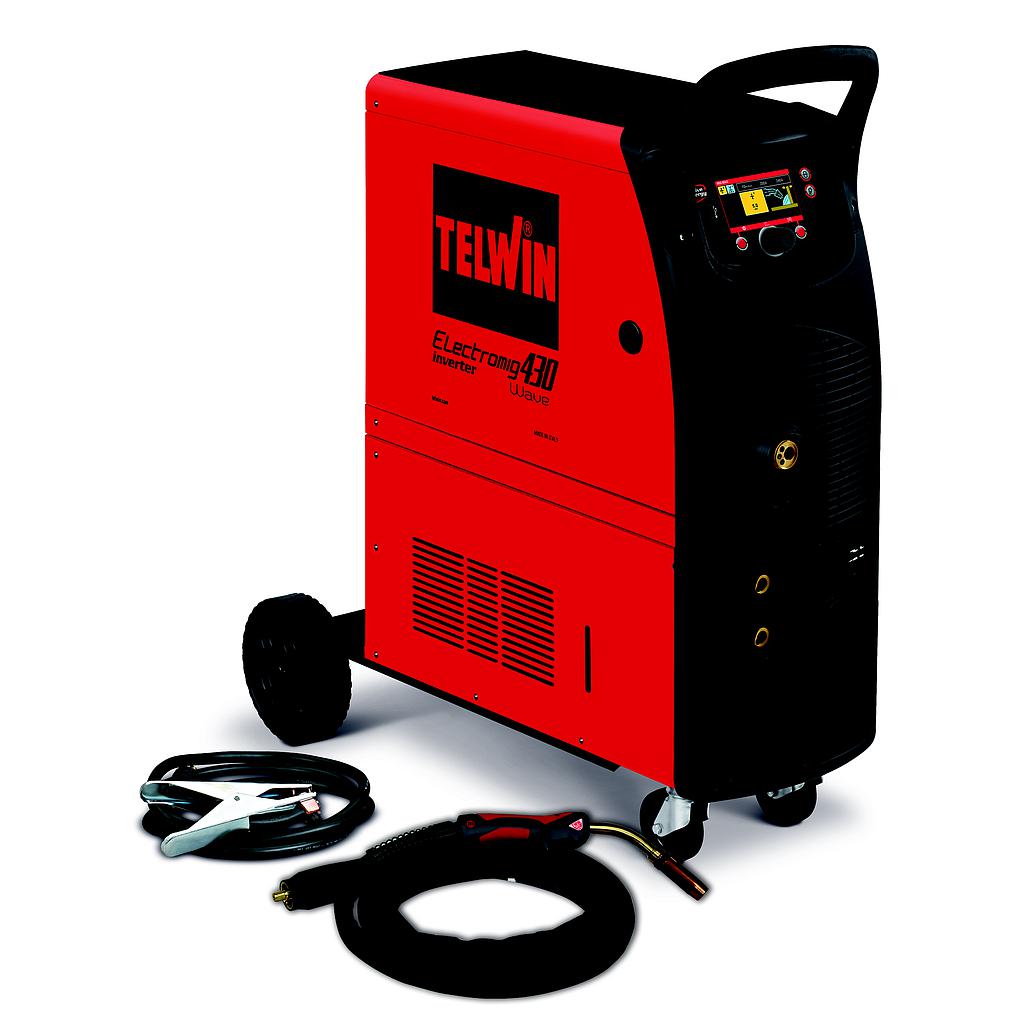

Telwin ELECTROMIG 430 WAVE AQUA MIG-MAG 3PH (1,6 - 8 mm)

MAX ABSORBED CURRENT: 33 / 25 A

D. USABLE ELECTRODES IN DC: 1,6 - 8 mm

THREE PHASE MAINS VOLTAGE: 230 /400 V

ABSORBED CURRENT AT 60% - MAX 17 / 15 A

STEEL WELDING WIRE DIAMETER: 0,6 -1,6 mm

MAINS FREQUENCY: 50 / 60 Hz

MAX ABSORBED POWER: 12,6 / 16,5 kW

INOX WELDING WIRE DIAMETER: 0,8 -1,6 mm

CURRENT RANGE: 20 - 320 / 20 - 400 A

ABSORBED POWER AT 60% 6,5 / 9,5 kW

ALUMINIUM WELDING WIRE DIAM. :0,8- 1,6 mm

MAX CURRENT DC (EN 60974-1): 320 @25% / 400 @ 30% A

EFFICIENCY: 89 V

FLUX CORED WELDING WIRE DIAM.: 1 -1,2 mm

DC CURRENT: 200 / 270 A

POWER FACTOR (cosphi): 0,9

BRAZING WIRE DIAM.: 0,8 - 1,2 mm

MAX NO LOAD VOLTAGE: 106 / 73 V

Included Accessories

TORCH HOOK - 645704

FEED ROLL 4R 0,6FE-0,8/0,9FE "P-K" - 742576

MT500 MIG TORCH 3M AQUA - 722625

G.R.A. 3300 GRUPPO RAFFREDDAM.ACQUA 230V - 802942

CABLE 50 MMQ 3 M WORK CLAMP DX50 - 723031
