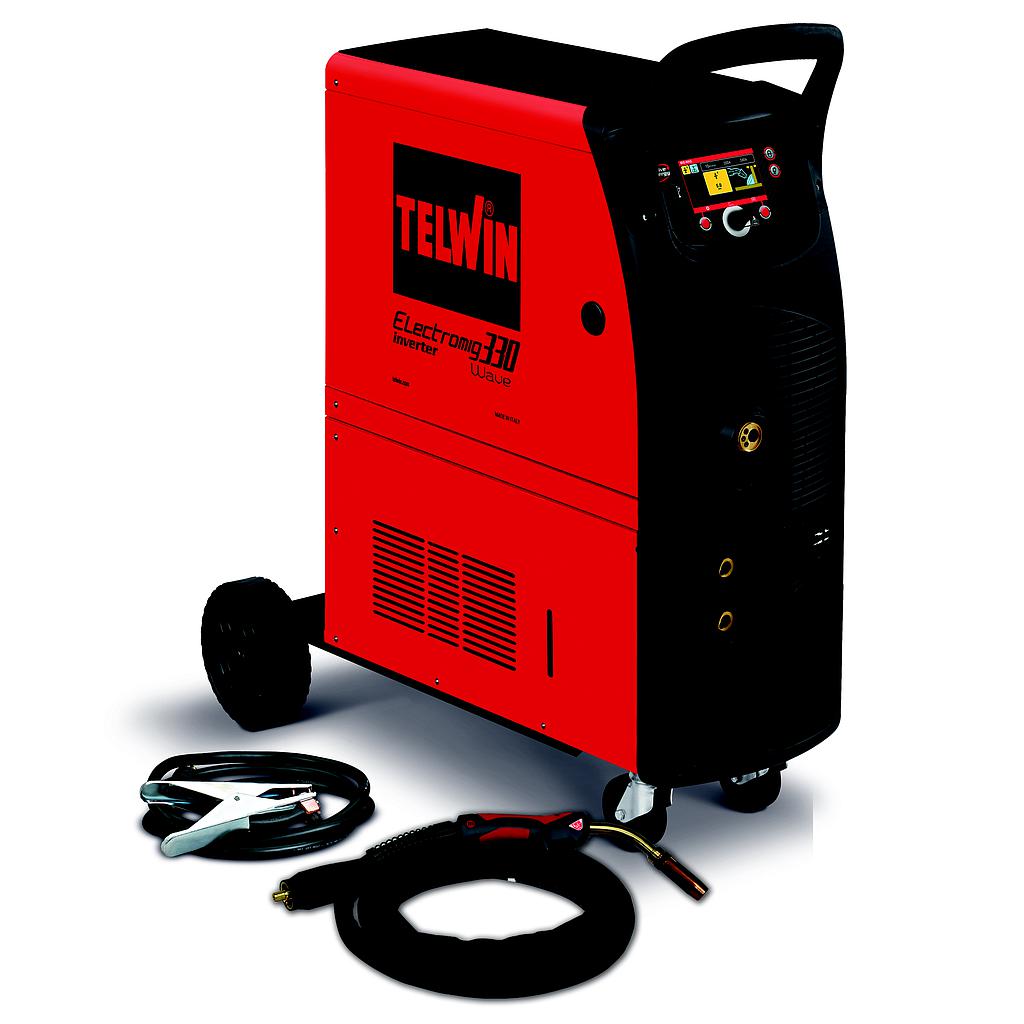

Telwin ELECTROMIG 330 WAVE AQUA MIG-MAG 3PH (1,6 - 6mm)

MAX ABSORBED CURRENT: 16 A

D. USABLE ELECTRODES IN DC: 1,6 - 6mm

THREE PHASE MAINS VOLTAGE: 400 V

ABSORBED CURRENT AT 60% - MAX 10,5 A

STEEL WELDING WIRE DIAMETER: 0,6 -1,2 mm

MAINS FREQUENCY: 50 / 60 Hz

MAX ABSORBED POWER: 9,2 kW

INOX WELDING WIRE DIAMETER: 0,8 -1,2 mm

CURRENT RANGE: 20 - 300 A

ABSORBED POWER AT: 60% 6,7 kW

ALUMINIUM WELDING WIRE DIAM.: 0,8- 1,2 mm

MAX CURRENT DC (EN 60974-1): 270 @ 30% A

MAINS FUSE: 16 A

FLUX CORED WELDING WIRE DIAM.: 0,8- 1,2 mm

DC CURRENT: 205 A

EFFICIENCY: 90 V

BRAZING WIRE DIAM.: 0,8 - 1,2 mm

MAX NO LOAD VOLTAGE: 63 V

POWER FACTOR (cosphi): 0,9

Included Accessories

TORCH HOOK - 645704

FEED ROLL 4R 0,6FE-0,8/0,9FE "P-K" - 742576

CABLE 25MMQ 3M-WORK CLAMP-ATLAS 50MMQ - 713192

G.R.A. 3300 GRUPPO RAFFREDDAM.ACQUA 230V - 802942

MT500 MIG TORCH 3M AQUA - 722625
