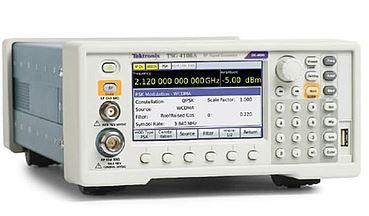

Manucturer: Tektronix
Model: TSG4106A (M01)
Option
Options M00 or M01 must be specified at the time of instrument order.
To upgrade to vector/digital modulation capability and/or add more modulation options after initial purchase, order "TSG4100A-UP + VM xx” instead of “TSG410xA VMxx”.
All specifications apply to all models unless noted otherwise.
0.1º (100 MHz to 1 GHz)
1.0º (1 GHz to 6 GHz)
1 μHz to 50 kHz: ≥62.5 MHz
1 μHz to 50 kHz: ≥93.75 MHz
Hi = 3.3 V
Hi = 3.3 V
< 2% of selected deviation + 20 Hz (fc > 62.5 MHz)
< 2% of selected deviation + 20 Hz (fc > 93.75 MHz)
100 kHz (fc > 62.5 MHz)
100 kHz (fc > 93.75 MHz)
0.1º (100 MHz to 1 GHz)
1º (1 GHz and above)
3% (fc > 62.5 MHz)
3% (fc > 93.75 MHz)
100 kHz (fc > 62.5 MHz)
100 kHz (fc > 93.75 MHz)
> 40 dB (1.0 GHz ≤ fc < 4.0 GHz)
> 35 dB (4.0 GHz ≤ fc < 6.0 GHz)
400 MHz to 4.0 GHz (TSG4104A)
400 MHz to 6.0 GHz (TSG4106A)
> -40 dBc for 3 GHz < fc ≤ 5 GHz
> -35 dBc for fc > 5 GHz
> 150 MHz (fc > 2.5 GHz, RF BW >300 MHz)
Option VM01 GSM, (GMSK, 270.833 kS/s, 935 MHz, 0 dBm), RMS EVM: 0.6%
Option VM02 GSM-EDGE, (3π/8 8PSK, 270.833 kS/s, 935 MHz, 0 dBm), RMS EVM: 0.30%
Option VM03 W-CDMA, (QPSK,3.840Mcps, 2.1425GHz, 0dBm), RMS EVM: 1.7%
Option VM03 W-CDMA (QPSK,3.840Mcps, 1.85 GHz, 0dBm), RMS EVM: 1.7%
Option VM04 APCO-25, (4FSK-C4FM, 4.8 kS/s,850 MHz, 0 dBm), Freq Err: 0.5%
Option VM05 DECT, (2FSK 1.152 Mbps,1.925 GHz, 0 dBm), RMS FSK Err: 1.5%
Option VM06 NADC, (π/4 DQPSK, 24.3 kS/s, 875 MHz, 0 dBm), RMS EVM: 0.3%
Option VM07 PDC, (π/4 DQPSK, 21 kS/s, 800 MHz, 0 dBm), RMS EVM: 0.6%
Option VM08 TETRA, (π/4 DQPSK,18 kS/s, 420 MHz, 0 dBm), RMS EVM: 0.7%
32QAM, (6 MS/s, 5.8 GHz, Root raised cosine filter, 0 dBm), RMS EVM: 1.6%
256QAM, (6 MS/s, 2.45 GHz, Root raised cosine filter, 0 dBm), RMS EVM: 1.1%
1.2 (4 GHz to 6 GHz)
