Accessories: 10x passive probe, Power cord, user manual, Documentation CD
Analog channels: 2
Bandwidth: 100Mhz
Sample rate: 2 GS/s
Record length: 2.5k
VERTICAL SYSTEM ANALOG CHANNELS
Bandwidth limited: 20 MHz
Input coupling: AC, DC, GND
Input impedance: 1 MΩ ±1%, 50 Ω ±1%
Input sensitivity range: 1 MΩ
Maximum input voltage 300 VRMS CAT II; derated at 20
Vertical resolution: 8 bit
Accuracy: ±3%
Offset Range: 2 mV/div ~ 5 V/div
HORIZONTAL SYSTEM ANALOG CHANNELS
Time base range: 2.5ns ~50s/ div
Time base accuracy: ±50 ppm
TRIGGER
Trigger modes Auto, Normal, and Single
Trigger Source: CH1, CH2, CH3, CH4, Ext, Ext/5, AC Line
Trigger types: Edge, PWM, Video
WAVEFORM MATH
Arithmetic: Add, subtract, multiply, FFT
FREQUENCY COUNTER
Resolution 6 digits
Accuracy (typical) + 51 parts per million including all frequency reference errors and +1 count errors
Frequency range AC coupled, 10 Hz minimum to rated bandwidth
DISPLAY SYSTEM
Display type: 7 inch
Display format: YT, XY
Input/ output Port: USB
POWER SOURCE
Power source:100 ~ 240 V ±10%, 50/60 Hz
Dimensions: 158.0 mm x 326.3 mm x 124.2 mm
Weight: 2Kg
TekSmartLab™ Solution:
TekSmartLab™ is the industry first network-based lab instrument management solution for quickly setting up and efficiently managing basic electronics engineering laboratories at colleges and universities. It supports up to 400 instruments (100 test benches) on a single platform. It automatically records and displays instrument asset information, providing laboratory administration with better information for classroom scheduling or making decisions on energy consumption and lab equipment investments. Instead of using a USB thumb drive, students can retrieve test results wirelessly with their smart devices. The centralized control of instruments enabled by the TekSmartLab solution dramatically improves the classroom and lab experience for students, instructors and lab managers.
Solution : 4 in 1 Package

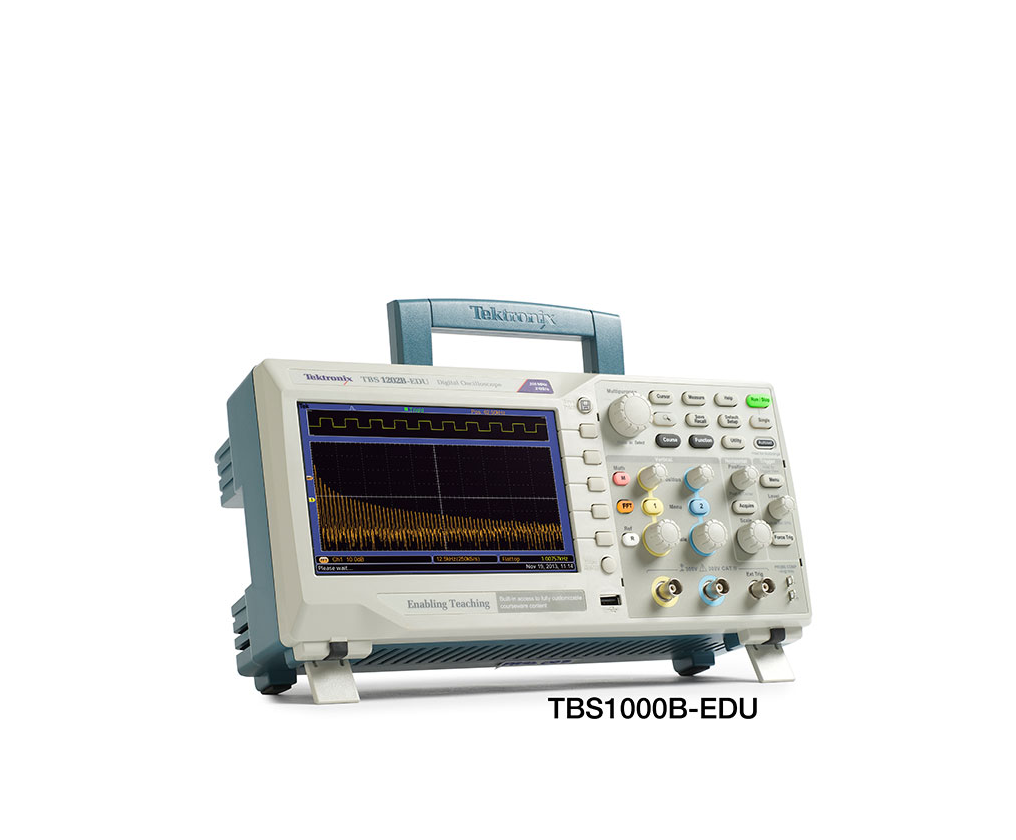

- Digital Scope TBS1102B-EDU
- Signal Generator AFG1022
- Power Supply 2231A-30-3
- Digital Multimeter 2110-220
- USB Adapter w/USB Cable 2231A-001
- TekSmartLab™ * TBX3000A , TSL3000B* (Software)
Vedeo Demo
