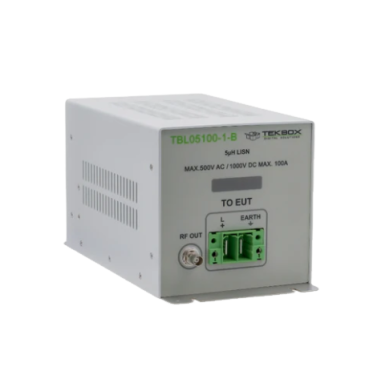

Topology: single path, configurable, 50Ω // 5µH + 1Ω, 50Ω // 5µH; the internal capacitor can be disconnected for ISO 7637-2 and DO-160 set ups; an external 10µF capacitor is required for DO-160; the LISN is factory setup to 50Ω // 5µH + 1Ω, other configurations require setting of an internal high current jumper
Supported standards: CISPR 16-1-2, CISPR 25, MIL-STD-461G, DO-160, ISO11452-4 and ISO 7637-2
Characterized frequency range: 10 kHz – 400 MHz
DC Resistance: < 5 mΩ Source+ to EUT+; < 5 mΩ Source- to EUT-
Maximum current: 100A; see plot with heat up characteristics, chapter 8
Maximum operating voltage range: 0 – 500V AC @50/60 Hz, 250V AC @ 400Hz, 1000V DC
High current plug / screw terminals; male: Phoenix Contact 1762741, female: Phoenix Contact
2 pcs female terminal blocks are supplied as default accessories
Jumper: Harwin D3087-98
Dimensions: 300 mm x 150 mm x 150 mm
Weight: 2.7 kg
