Suitable for large crankshafts or transmission housings.
• 700 mm column with +9-45° manual tilt.
• 120 mm traverse unit.
• Manual gauge stem rotation.
• CNC 1150 - weight capacity up to 150 kg* , ideally suited to 6 cylinder crankshafts and camshafts.
• CNC 1075 - weight capacity up to 75 kg* , ideally suited to 4 cylinder crankshafts and camshafts.
Key system benefits and features
Cycle times are greatly reduced - Up to 8 axes of motion
High accuracy gauge - World-leading 5 mm gauge with 0.4 nm resolution
Temperature compensation - Ensures consistent system performance and high measurement integrity, regardless of environmental effects
Fully automated measurement - With evaluation and SPC analysis
Simple user friendly interface - I deal for programming and analysis
Customisable fixtures and work holdings - Part identification using RFID and barcodes
1.5 metre granite base for workpieces - Up to 400 mm in size and weight up to 150 kg
Robust measurement solution - Suitable for all environments

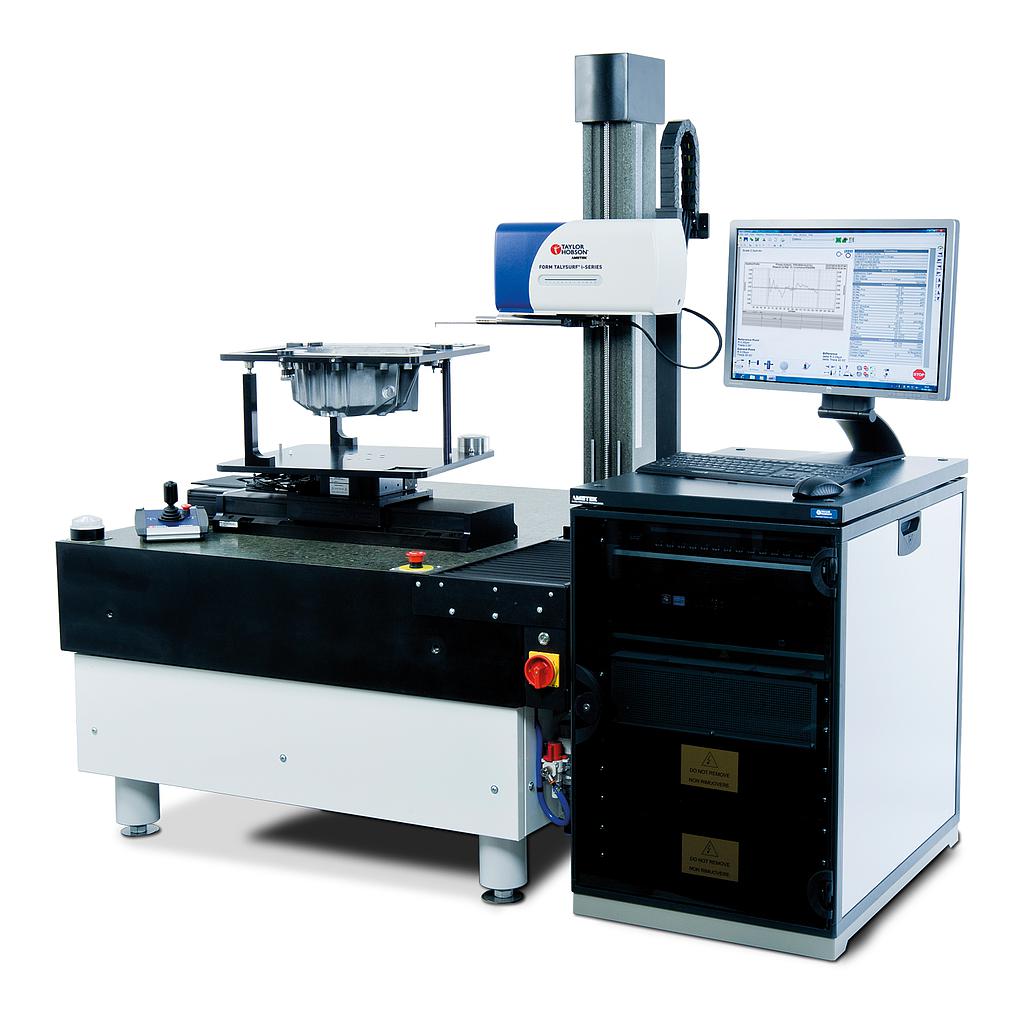

The Form Talysurf® CNC Series is an automated surface finish (roughness, waviness), form, contour measurement instrument designed for the shop floor environment. This equipment delivers 5 mm gauge range and 0.4 nm resolution and unique temperature compensation as standard. Use our optional TalyMap® 3D software to transform your conventional 2D measurements into 3D analysis results.
Taylor Hobson Form Talysurf® CNC Series is a versatile, high range, high resolution, automated surface finish, form and contour measuring instrument.
While the use of highly automated manufacturing systems in automotive production is well established, quality control has remained a manual process. The arrival of the Form Talysurf® CNC Series for automated quality control will change that.
The system can be programmed to your individual requirements for analysis of crankshafts, heads, blocks, gear box casings and much more.
The Form Talysurf® CNC Series is supplied with Taylor Hobson's Q-Link production interface, software that meets the Industry 4.0 philosophy. Q-Link is designed for shop floor environments and provides direct communication with SPC software which delivers feedback to your manufacturing process.
