Direct access to our certified experts
Gauge: up to 4 mm
Resolution, down to 0.3 nm
Roundness: Radial accuracy ± 0.01 μm
Roughness: Noise < 30 nm Rq all axes; Ra values < 0.1 µm Rq
Contour: LS Arc measurement 5 µm; Pt 0.5 µm.
Key features
Automated Gauge calibration
Automatic Centre and level with arm follow mode
High precision air bearing spindle ± 0.015 µm
Gauge resolution 0.3 nm
300 mm, 500 mm, 1000 mm or 1200 mm Vertical straightness unit

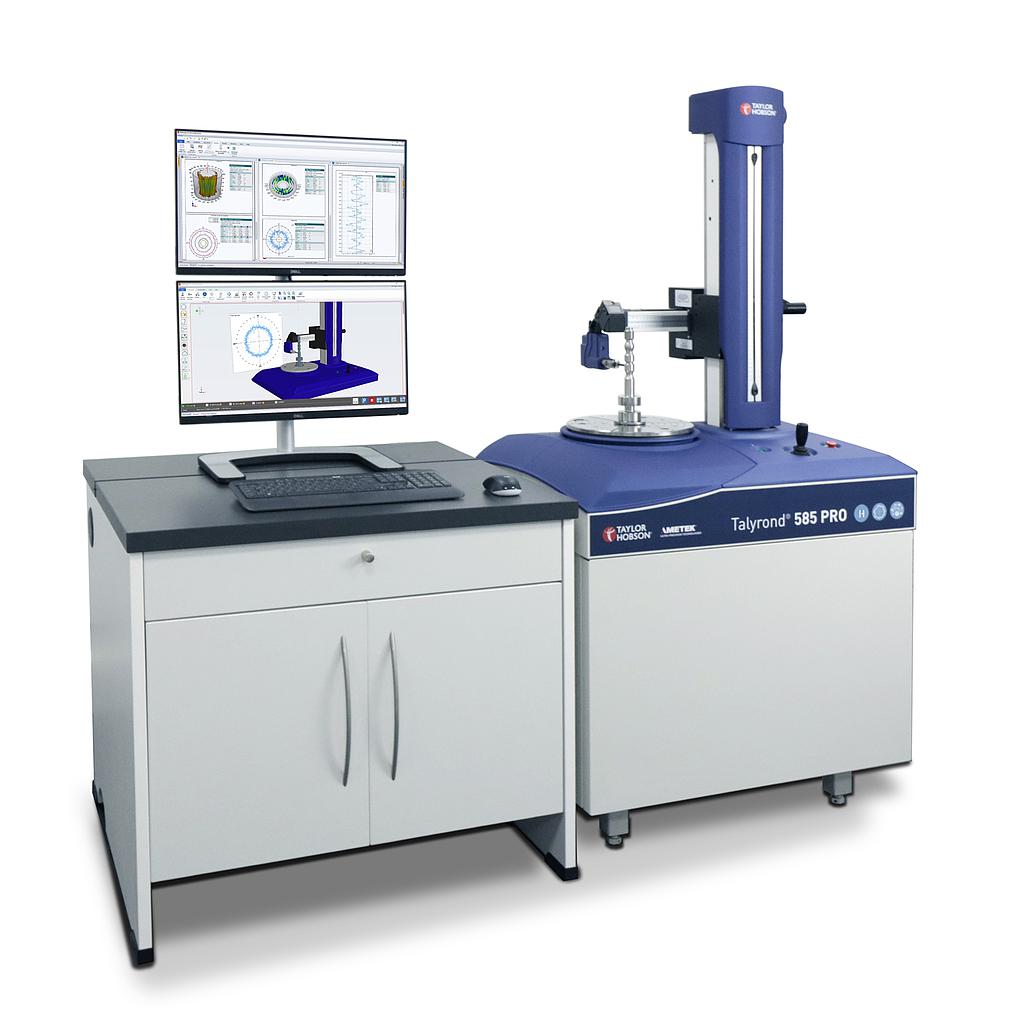

The Talyrond® 585H PRO is a fully automated roundness/cylindricity instrument that is unsurpassed in accuracy and reliability, with 6 versions to choose from offering the right balance of automation and capacity for virtually every application. State of the art electronics have allowed full control of all axes with fast and accurate modes allowing the right combination of measurement and movement speed for the most challenging of components.
Taylor Hobson's patented arm orientation provides full automation in almost any attitude making it the most versatile of instruments and an industry benchmark in roundness instrumentation.
Applications
Ball screw - full length of the contact point of the ball screw or lead screw
Camshafts - comparison to a DXF or lift data.
Bearing races - harmonic analysis
Crankshafts - Roundness, straightness, cylindricity, parallelism, twist and surface texture
Roller bearings - roughness, form, roundness and part alignment
Fluid dynamic bearings - roundness, topography and roughness
Brochure
