Gain: 28 dBi, 28 dBi, 28 dBi
VSWR: 3:1, 2:1, 3, 3

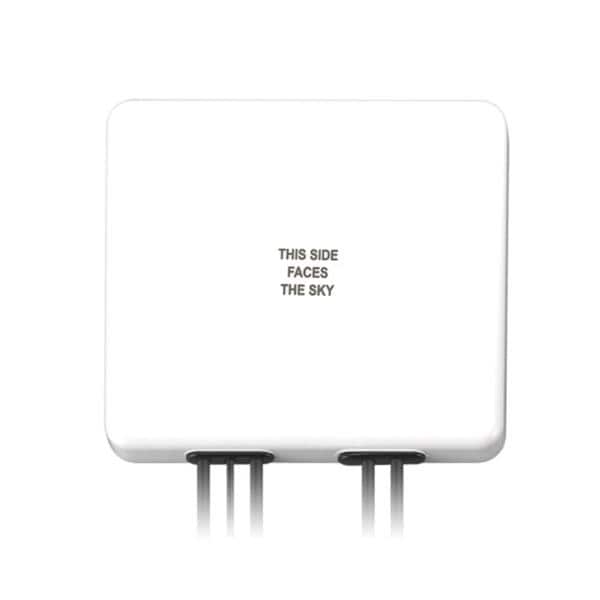

Style: Panel
Width: 134 mm
Height: 20 mm
Length: 146 mm
IP Rating: IP67
Impedance: 50 Ohms
Cable Type: 1 M RG174, 2 M KSR200-P x 4
Application: M2M, IoT Gateway, Routers, HD Video Streaming, Transportation, Remote Monitoring
Cable Length: 1 m
Polarization: Linear, RHCP
Mounting Style: Bracket Mount
Electrical Type: Active
Number of Bands: 5 Band
Center Frequency: 700 MHz, 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2600 MHz, 3500 MHz, 1575.42 MHz, 1561.098 MHz, 1602 MHz
Mechanical Style: Module
Maximum Frequency: 5.85 GHz
Minimum Frequency: 698 MHz
Termination Style: Connector
Antenna Connector Type: RP-SMA Male, SMA Male
Protocol - GPS, GLONASS: BEIDOU, Galileo, GLONASS, GPS, IRNSS
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, WCDMA, HSPA
