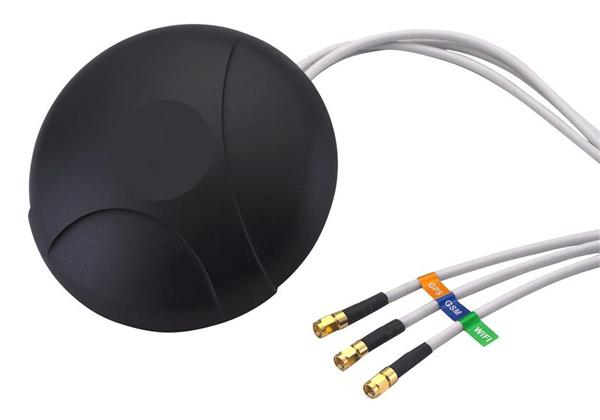

Taoglas MA600.A.ABC.006 MIMO PERMANENT MOUNT COMBO ANTENNA

Gain: 5.1 dBi, 2.1 dBi, 2.9 dBi, 3.8 dBi, 2.8 dBi

VSWR: 2, 1.6:1

Style: Dome

Length: 39.5 mm

Diameter: 145.6 mm

Bandwidth: 10 MHz

IP Rating: IP67

Impedance: 50 Ohms

Cable Type: 3 M RG174, 3 M CFD200

Application: Vehicle Telematics, Remote Monitoring, Smart Meter Systems, Construction Equipment

Cable Length: 3 m

Polarization: Linear

Mounting Style: Direct / Permanent Mount

Electrical Type: Active

Number of Bands: 3 Band

Center Frequency: 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2450 MHz, 4800 MHz, 5200 MHz, 5500 MHz, 1575 MHz, 1602 MHz

Mechanical Style: Module

Maximum Frequency: 5.9 GHz

Minimum Frequency: 824 MHz

Termination Style: Connector

Protocol - Sub GHz: IoT, ISM

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: Galileo, GLONASS, GPS

Protocol - WiFi - 802.11: 802.11, WiFi, WLAN

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, WCDMA, HSPA

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
