Gain: 0.2 dBi, 0.6 dBi, 1.4 dBi, 1.4 dBi, 1.9 dBi, 0.2 dBi

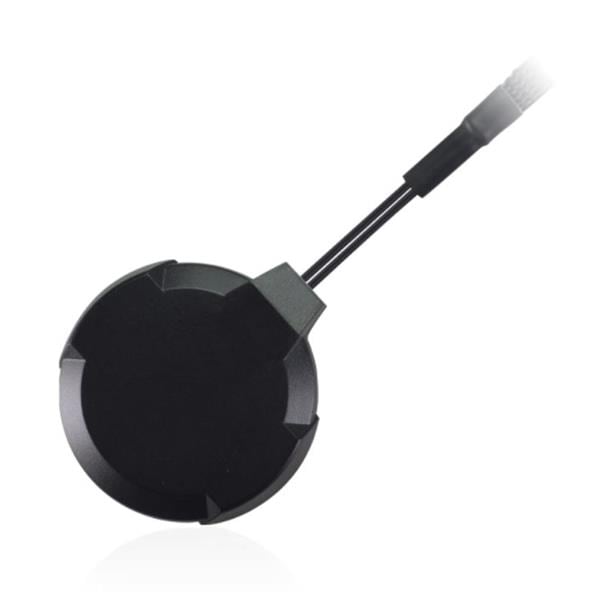

Style: Puck
Width: 62.8 mm
Height: 12 mm
Length: 68 mm
IP Rating: IP67
Impedance: 50 Ohms
Cable Type: 360 mm RG174, 2.64 M CFD200
Application: Wireless Applications
Cable Length: 360 mm, 2640 mm
Polarization: Linear
Mounting Style: Adhesive Mount
Number of Bands: 3 Band
Center Frequency: 2.45 GHz, 5.5 GHz, 6.5 GHz
Mechanical Style: Module
Maximum Frequency: 7.425 GHz
Minimum Frequency: 2.4 GHz
Termination Style: Connector
Protocol - Sub GHz: IoT, ISM
Antenna Connector Type: RP-SMA Male
Protocol - WiFi - 802.11: 802.11, WiFi, WLAN, WiFi 6E
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
