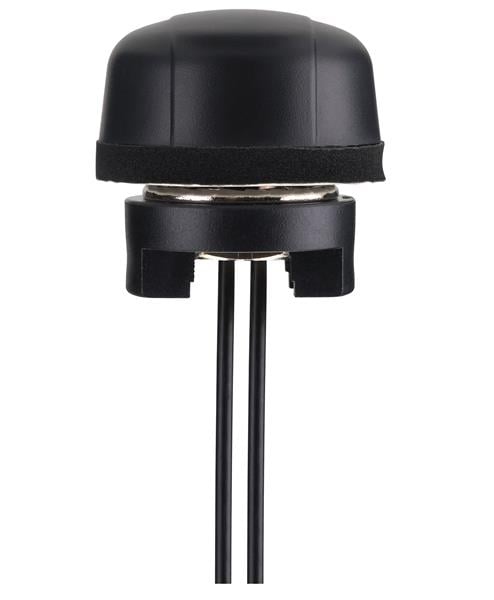

Taoglas MA104.C.AB.015 MIMO Hercules MA104 2in1 GPS/GALILEO 3G/2G Permanent Mount Antenna oe48*29mm

Gain: 3 dBi, 0.1 dBi, 1.6 dBi, 0.6 dBi, 0.1 dBi, - 0.9 dBi

VSWR: 3.5.0:1, 2

Style: Dome

Length: 29 mm

Diameter: 49 mm

IP Rating: IP65

Impedance: 50 Ohms

Cable Type: RG174

Technology: GPS, Cellular

Application: Cellular Application, Asset Tracking, Remote Monitoring

Unit Weight: 235.872 g

Cable Length: 3 m

Polarization: Linear, RHCP

Power Rating: 10 W

Mounting Style: Direct / Permanent Mount

Electrical Type: Active

Number of Bands: 6 Band

Center Frequency: 850 MHz, 900 MHz, 1900 MHz, 1800 MHz, 2100 MHz, 1575.42 MHz

Mechanical Style: Module

Maximum Frequency: 2.17 GHz

Minimum Frequency: 824 MHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: Galileo, GPS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, UMTS, GPRS, WCDMA
