Gain: 2 dBi, 1.5 dBi, 3 dBi, 2.5 dBi, 2 dBi, 2.5 dBi
VSWR: 2.5:1

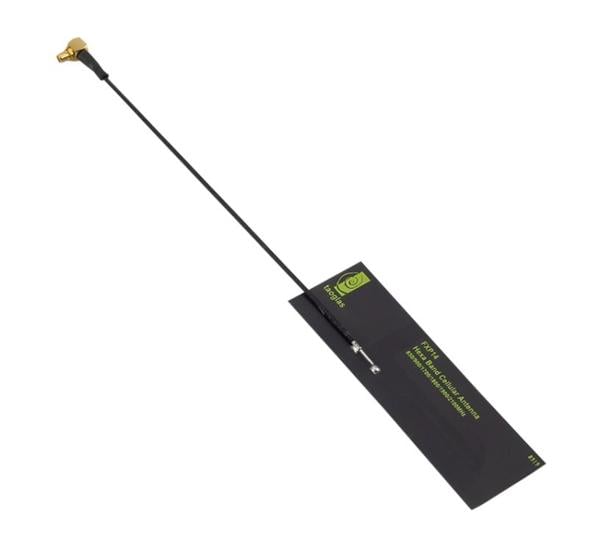

Style: I-Bar Flex
Width: 20 mm
Height: 0.1 mm
Length: 70 mm
Impedance: 50 Ohms
Cable Type: 105 mm RF1.13
Technology: Cellular
Application: Cellular Application
Unit Weight: 2 g
Cable Length: 100 mm
For Use With: GSM/CDMA/DCS/PCS/WCDMA/UMTS/HSPA/GPRS/EDGE/3G
Polarization: Linear
Power Rating: 5 W
Mounting Style: Adhesive Mount
Number of Bands: 6 Band
Center Frequency: 850 MHz, 900 MHz, 1700 MHz, 1800 MHz, 1900 MHz, 2100 MHz
Mechanical Style: PCB Trace
Maximum Frequency: 2.1 GHz
Minimum Frequency: 850 MHz
Termination Style: Connector
Protocol - Sub GHz: ISM
Antenna Connector Type: MMCX Male Right Angle
Protocol - WiFi - 802.11: WLAN
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Protocol - Cellular, NBIoT, LTE: 2G/3G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, GRPS, PCS, WCDMA, CDMA, EDGE, HSPA
