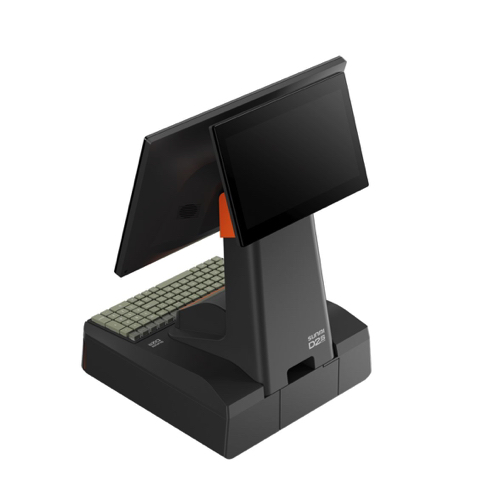

Sunmi D2s PLUS COMBO Smart Desktop Terminal (Cortex-A17, quad-core 1.6GHz; Quad-core Cortex-A55 2.0GHz)

Processor: Cortex-A17, quad-core 1.6GHz or Quad-core Cortex-A55 2.0GHz

Memory: 2GB RAM+16GB ROM, 4GB RAM+64GB ROM (Optional)

Operating System: SUNMI OS (based on Android 7.1 and Android 11)

Main Display: 15.6-inch FHD, 1920x1080, Multi-point Capacitive Touchscreen

Secondary Display:

Configuration 1: Main Display: 15.6-inch FHD, 1920x1080 Multi-point Capacitive Touchscreen. Secondary Display: 10.1-inch HD, 1024x600 Multi-point Capacitive Touchscreen (supports facial recognition camera)

Configuration 2: Main Display: 15.6-inch FHD, 1920x1080 Multi-point Capacitive Touchscreen. Secondary Display: 15.6-inch FHD, 1920x1080 Multi-point Capacitive Touchscreen (supports facial recognition camera)

Camera: Facial Recognition Camera (Optional)

Power Adapter: Input: AC 100～240V/1.7A. Output: DC 24V/2.5A

Speaker: 1x 3W

Connectivity: 100M LAN, Wi-Fi: 2.4GHz, supports IEEE 802.11 b/g/n, Bluetooth: 2.1/3.0/4.0/4.2/5.0

Button: 1x Power button (screen lock button)

Printer: Integrated 80mm thermal printer. Print Speed: 250 mm/s. Printer Lifespan: 150 km. Paper Roll: φ80mm

TF Card: Supports MicroSD (TF) up to 1TB

Peripheral Ports: 5x USB Type-A port, 1x RJ11 Serial port, 1x RJ12 Cash drawer port, 1x RJ45 LAN port, 1x Audio Jack, 1x Power port, 1x Micro-USB debug port

Operating Temperature: 0°C ~ 40°C

Storage Temperature: -20°C～60°C

Dimensions (LxWxH):

Configuration 1: 381.73x349.08x498.52mm or 381.73x349.08x535.79mm (with facial recognition camera)

Configuration 2: 381.73x369.61x525.52mm or 381.73x369.61x561.85mm (with facial recognition camera)

Weight:

Configuration 1: 7.770kg/7.820kg (with facial recognition camera)

Configuration 2: 8.695kg/8.745kg (with facial recognition camera)

Cash Drawer: 4 standard bill trays, 1 large bill tray, and 3 coin trays; 9V-24V

Keyboard: 89-key QWERTY, USB Type-C, IP55

Datasheet
