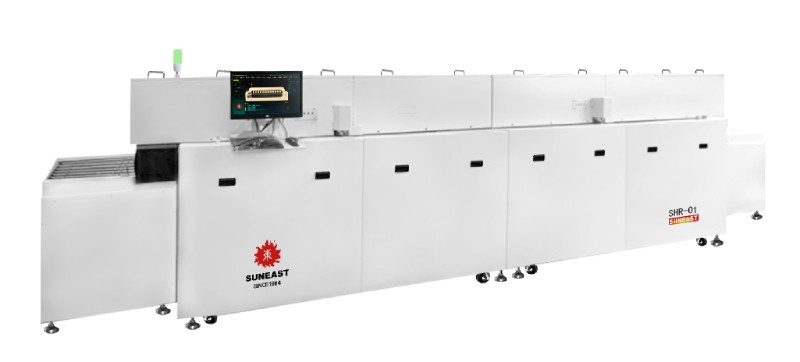

Suneast SHR-01B Tunnel Drying Oven (RT ~ 200℃)

Dimension:L6566xW1420xH1685mm

Weight:Approx.1400kg

Power Supply:3P5L 380V 50/60Hz

Control system:PC+PLC

Total Power:Approx.45KW

Conveying Type:Stainless steel customized supporting chain

Channels:6 Channels

Product height (including fixture):L162*W68-82*H160mm

Infeed height:900±20mm

Conveying Speed:30-150mm/min

Speed control mode: Closed Ioop stepless speed regulation by inverter

Conveying direction:L-R(Option：R-L)

Temperature control mode:PID

Temperature range:Room temp~200℃

Heating system:Heating on the channel

Heating zones:8 heating zones

Heating zone length:4800mm

Cooling zone length:N/A(Option)

Warming up time:Approx.15min(Set temp 150℃)

Running power:Approx.6KW

Temperature value display accuracy:1℃

Abnormal alarm:Three-color signal light+human-machine interface alarm

Exhaust requirement:2-Φ150 air outlet，the exhaust air volume of a single air outlet is about 15m³/min

Parameter storage:Process Data and status stotage

Power cut protection:Equipped with UPS

Air source:N/A
