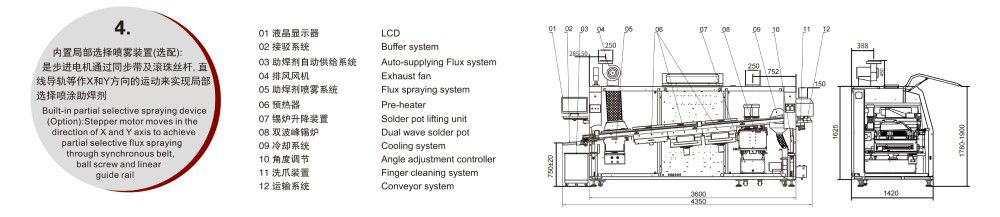

Dimension：LxWxH(mm) 4350x1690x1750
Weigh: Approx 1950kg
Power Supply: 3PH 380V 50HZ
Startup Power: 45KW
Operation Powr Consumption: Approx.11KW
Control System: PC+PLC
Spraying movement: Step motor
Spray Pressure: 0.2Mpa-0.4Mpa
Flux Flow Arrange: Option
Auto Fill Flux: Standard
Exhaust: Top exhaust+Side exhaust
Exhaust Ducting Diameter(mm): Φ250
Exhaust Fan Power: 750W
Preheating Mode: Convection / IR emitter
Control Mode: PID
Preheating Zone Number: 3
Preheating Length(mm): 1800
Preheating Temperature: Room temperature~200℃
Warm-upTime(min): Approx.12min (setting：150℃)
Blower Motor: 250W 3PH 220VAC
PCB Width(mm): 50-610
Convoyor Direction: L-R (Option：R-L)
Conveyor Speed(mm/min): 500~1800
Conveyor Height(mm): 750±20
Available Component Heigh (mm): Top 120, Bottom 15
Conveyor Speed Control Mode: Frequency converter closed-loop stepless speed regulation
Fingers: Heavy-duty double Finger/Option: special Finger for Fixture
Conveyor Angle: 4-7°
Type of solder Pot: Motor drive
Solder Pot Material: Casting Iron
Wave Height Adjustment: Frequency converter: computer digital control
Cooling Method: Forced air cooling, Option: water cooler
Heater Power: 18KW
Solder Pot Temperature: 300℃
Solder Pot Capacity: Approx.640KG
Wave Drive Power: 180W*2 3PH 220VAC
Solder Pot Warm-up Time: Approx.150min (setting：250℃)
Temperature Control Mode: PID
Finger Cleaning System: Brush
