Frequency
Sine/Square: 1μHz-35MHz
Pulse: 1μHz-25MHz
Ramp: 1μHz-3MHz
PRBS: 1kbps~60Mbps
Noise (-3dB): 100MHz Width
Other: 1μHz~20MHz
Resolution: 1μHz or 12 digits
Accuracy: ±(20ppm + 14pHz)
Waveform
Type: 165 kinds include: Sine, Square, Ramp, Pulse, Noise, DC, PRBS, user-defined,Arbitrary waveform, user-defined harmonic, etc
Sample rate: 250MSa/s
Vertical resolution: 16 bits
Arbitrary
Sample Rate: 1μSa/s~125MSa/s
Length: 2-16Mpts
Resolution: 16 bits
Square
Rise/Fall Time: ≤4.2ns
Duty Cycle: 0.0001%~99.9999%
Pulse
Rise/Fall Time: ≥8ns
Width: 13ns ~ (period - 13ns)
Amplitude(High Z)
Range:
2mVpp~20Vpp, frequency≤10MHz
2mVpp~10Vpp, frequency>10MHz
Resolution: 1mVpp or 4digits
Accuracy: ±(of settings value×1%＋1mV), Sine 1kHz, ≥10mVpp, offset 0V
Offset(High Z)
Range: ±10Vpk(ac＋dc)
Resolution: 1mVdc
Accuracy: ±(|setting value|×1%＋2mV＋amplitude value ×0.5%)
Sweep
Range: 1μHz ~ upper frequency limit
Type: Linear, logarithmic
Time: 1ms to 500s
Modulation
FM,AM,PM, PWM, Sum
Carrier Waveform: Sine, Square, Ramp (only pulse for PWM), etc.
Modulating Waveform: Sine, Square, Ramp, etc.
Modulating Frequency: 1mHz to 100kHz
FSK,4FSK, NFSK,PSK, 4PSK,NPSK, ASK,OSK
Carrier Waveform: Sine, Square, Ramp, ect
Hop Frequency: 1μHz -upper limits
Hop Rate 1mHz to 1MHz
Burst
Mode: Triggered, Gated
Period: 1μs to 600s
Count: 1 to 100000000 cycles
Counter
Frequency Range:
1mHz to 350MHz(DC Couple)
10Hz to 350MHz(AC Couple)
Resolution: 8 digits/s
Period and Pulse Width Measurement: 100ns to 20s
Duty Cycle Measurement: 0.1% to 99.9%
General Characteristic
Power
AC 100~240V, 50/60Hz ±10%
AC 100~120V, 400Hz ±10%
Dimension & Weight
226mm×200mm×125mm, Approx. 2.9kg
226mm×200mm×166mm, Approx. 3.3kg
(if amplifier power is selected)
Accessory:
Power Cord: 1pcs
BNC cable: 1pcs
CD(software+manual): 1pcs

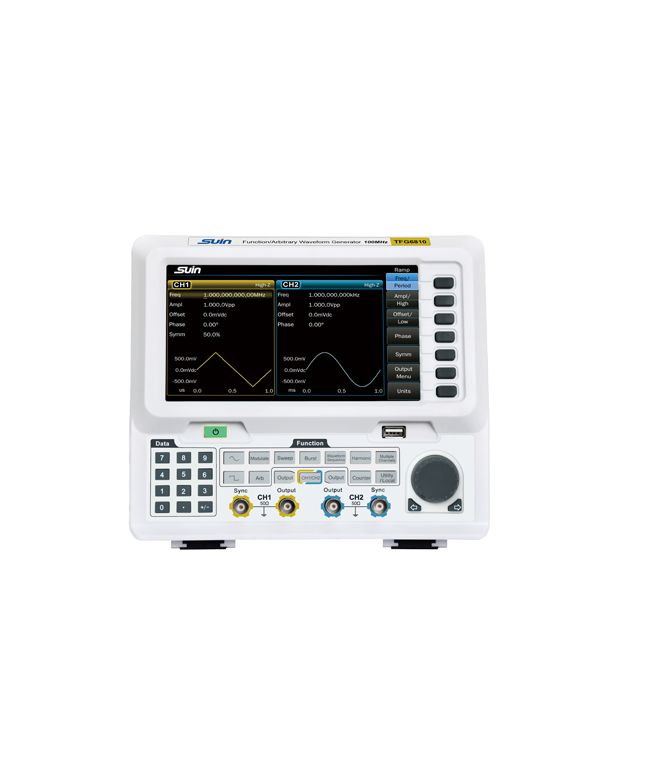

The TFG6800 series 35MHz/65MHz/100MHz signal generators are multifunctional generators that combine multiple functions, including function generator, arbitrary waveform generator, pulse generator, harmonic generator, analog/digital modulator and counter. All three models have two channels with fully equivalent functions and precisely adjustable phases, making them true dual-channel signal generators.
