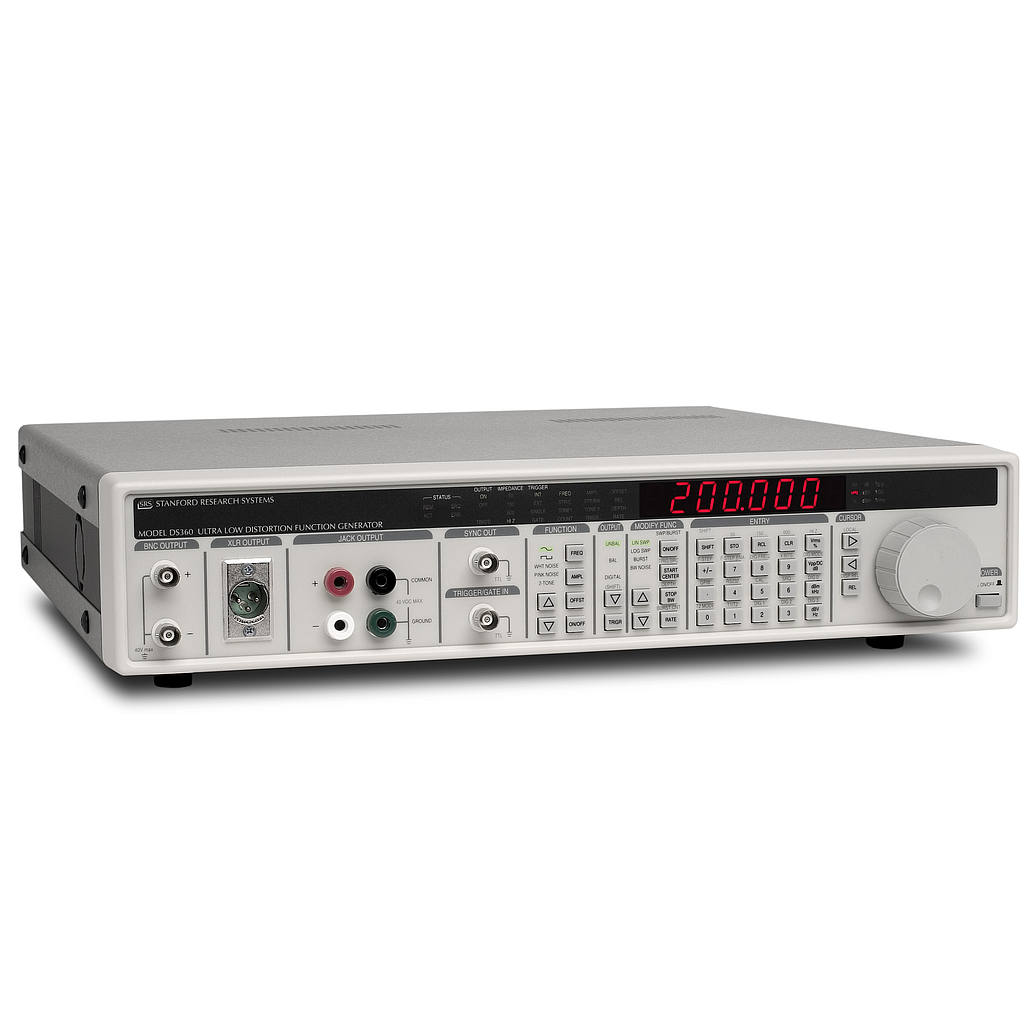

Sine:
THD (1 Vrms unbal., 2 Vrms bal.):
(<5 kHz): -110 dB (typ.), -106 dB (max.)
(5 to 20 kHz): -104 dB (typ.), -98 dB (max.)
(20 to 40 kHz): -100 dB (typ.), -96 dB (max.)
(40 to 100 kHz): -90 dB (typ.), -85 dB (max.)
(100 to 200 kHz): -76 dB (typ.), -68 dB (max.)
THD (10 Vrms unbal., 20 Vrms bal.):
(<5.0 kHz): -109 dB (typ.), -105 dB (max.)
(5 to 20 kHz): -103 dB (typ.), -98 dB (max.)
(20 to 40 kHz): -98 dB (typ.), -93 dB (max.)
(40 to 100 kHz): -88 dB (typ.), -83 dB (max.)
(100 to 200 kHz): -76 dB (typ.), -68 dB (max.)
Square:
Frequency range: 0.01 Hz to 200 kHz
Rise time: 1.3 µs
Even harmonics: < -60 dBc (to 20 kHz)
White Noise:
Bandwidth: DC to 200 kHz
Flatness: <1.0 dB, 1 Hz to 100 kHz
Crest factor: 11 dB
Pink Noise:
Bandwidth: 10 Hz to 200 kHz
Flatness: < 3.0 dB, 20 Hz to 20 kHz (measured using 1/3 octave analysis)
Crest factor: 12 dB
Sine or Square Sweep:
Type: Linear or logarithmic
Range: 0.01 Hz to 200.000 kHz
Rate: 0.1 Hz to 3.1 kHz
Resolution: 2 digits
Flatness: ±0.1 dB (1 %)
Frequency:
Resolution: 6 digits or 10 mHz (whichever is greater)
Accuracy: 25 ppm (0.0025 %) + 4 mHz (20 °C to 40 °C)
Amplitude:
Unbalanced outputs:
5.0 µVpp to 14.4 Vpp (50 Ω load)
5.0 µVpp to 20.0 Vpp (600 Ω load)
10.0 µVpp to 40.0 Vpp (Hi-Z load)
Balanced outputs:
10 µVpp to 28.8 Vpp (50 Ω load)
10 µVpp to 28.8 Vpp (150 Ω load)
10 µVpp to 40.0 Vpp (600 Ω load)
20 µVpp to 80.0 Vpp (Hi-Z load)
Resolution: 4 digits or 1 µV, whichever is greater (Vpp or Vrms), 0.1 dB (dBm or dBV)
Accuracy:
Sine, Square, 2-Tone: ±0.1 dB (1 %)
White Noise: ±0.175 dB (2 %)
Pink Noise: ±0.35 dB (4 %)
Outputs:
Configuration: Balanced and unbalanced
Connectors: Floating BNCs, banana plugs and XLR jack
Source impedance:
Balanced: 50 Ω ± 3 %; 150 Ω± 2 %; 600 Ω ± 1 %; Hi-Z (50 Ω ± 3 %)
Unbalanced: 50 Ω ± 3 %; 600 Ω ± 1 %; Hi-Z (25 Ω ± 1 Ω)
Floating voltage: ±40 VDC (max.)
General:
Computer interfaces: GPIB and RS-232. All instrument functions can be controlled.
Size: 17" × 3.5" × 16.25" (WHL)
Weight: 17 lbs.
Power: 50 W, 100/120/220/240 VAC, 50/60 Hz
