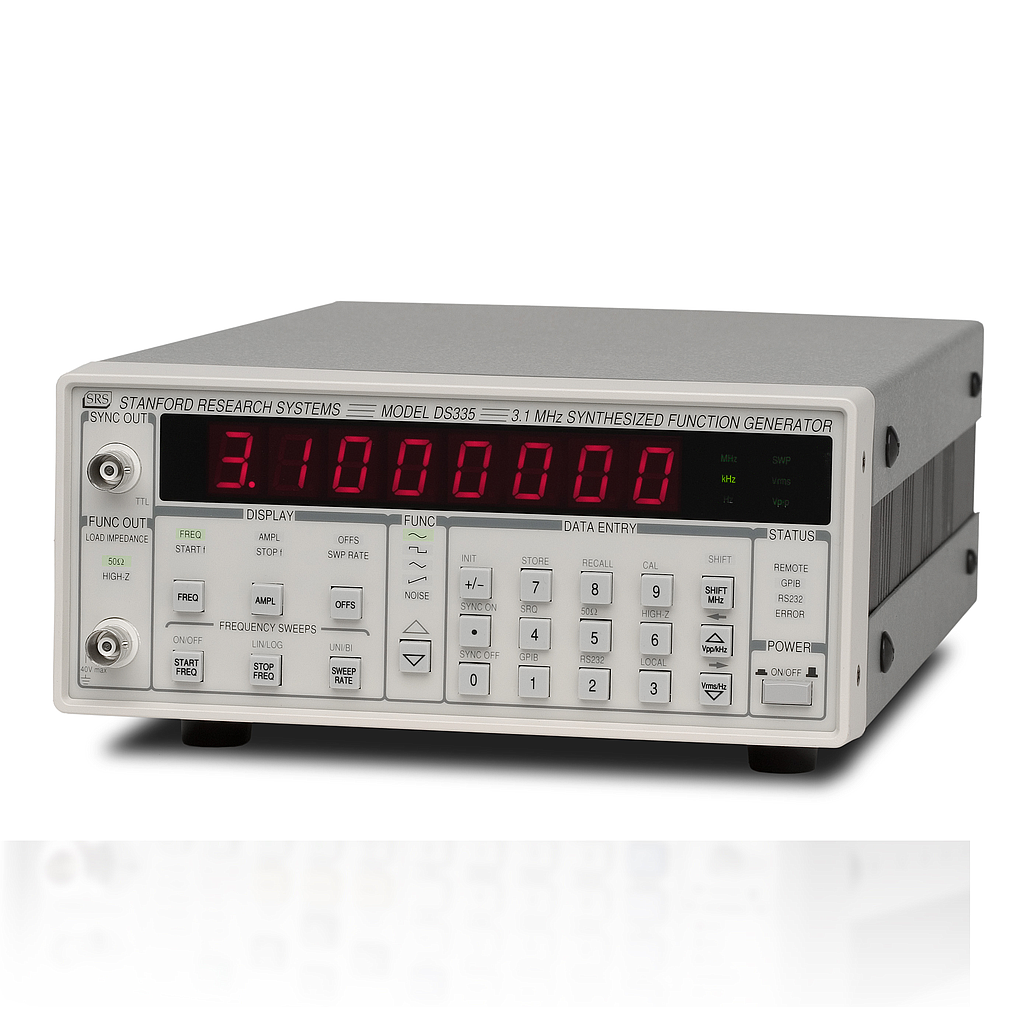

Frequency Range: Sine, Square, Ramp, Triangle
Max. Frequency: 3.1 MHz, 3.1 MHz, 10 kHz, 10 kHz
Resolution: 1 µHz, 1 µHz, 1 µHz, 1 µHz
Noise: Max. Frequency: 10 MHz
Amplitude:
Range: 50 mVpp to 10 Vpp (50 Ω), 100 mVpp to 20 Vpp (High-Z)
Resolution: 3 digits (DC offset = 0 V)
Offset: ±5 VDC (50 Ω), ±10 VDC High-Z)
Offset resolution: 3 digits
Accuracy: 0.1 dB (sine output)
Sine Wave:
Spurious response: <-65 dBc to 1 MHz, -55 dBc to 3.1 MHz
Harmonic distortion:
DC to 100 kHz: <-60 dBc
100 kHz to 1 MHz: <-50 dBc
1MHz to 1 MHz: <-50 dBc
1 MHz to 3 MHz: <-40 dBc
Phase noise: <-60 dBc (30 kHz band centered on carrier)
Square Wave:
Rise/fall time: <15 ns ± 5 ns (10 % to 90 %)
Asymmetry: <3 ns + 1 % of period
Overshoot: <5 % (full-scale output)
Ramps and Triangles:
Rise/fall time: 100ns
Linearity: ±0.1 % of full scale
Settling time: 200 ns (0.5 % of final value)
Sweeps:
Type: Linear and logarithmic (phase continuous)
Span: Linear (full frequency range), log (6 decades)
Sweep rate: 0.01 Hz to 1 kHz
General:
Interfaces: Optional RS-232 and GPIB. All instrument functions are controllable over the interfaces.
Non-volatile memory: Up to nine sets of instrument settings may be stored and recalled.
Dimensions: 8.5" × 3.5" × 13" (WHL)
Weight: 8 lbs.
Power: 22 W, 100/120/220/240 VAC, 50/60 Hz
