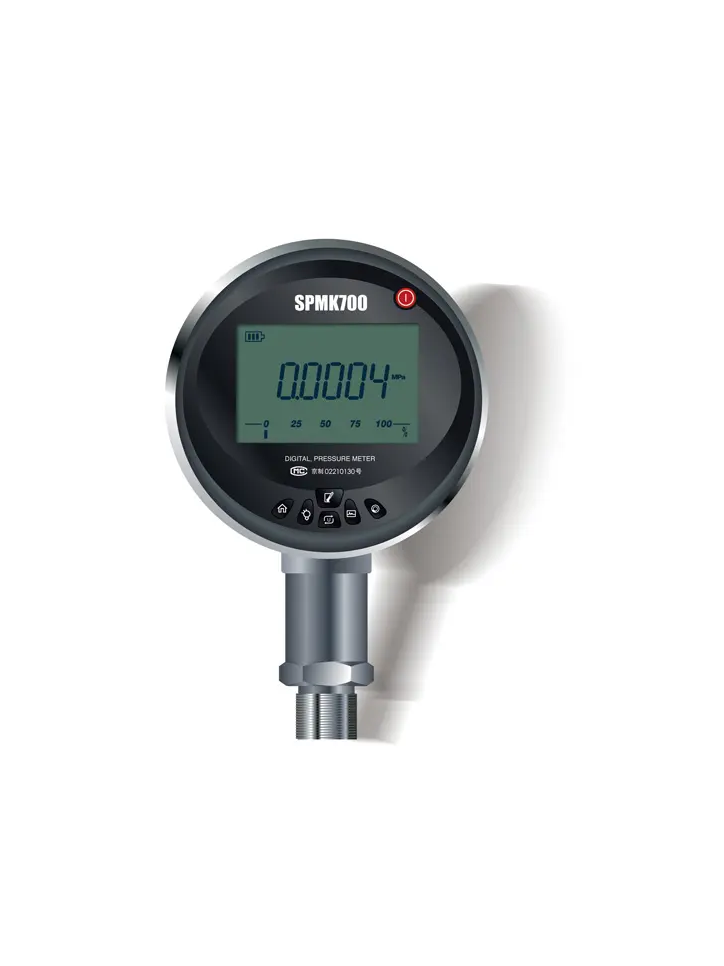

SPMK SPMK700 Digital Pressure Gauge (0.02%F.S, selectable pressure range (-0.1–250) MPa)

ManufacturerSPMK(View more products from this manufacturer)
ModelSPMK700
P/NSPMK700 (0.02%F.S)
USD 1,530.00
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available

Pressure range: (-0.1-250)MPa (Select the appropriate pressure range from the information below)

Accuracy: ±0.02%FS

Pressure type: Gauge pressure, Absolute pressure, Differential pressure(Select when ordering)

Connector

Connection thread of M20×1.5, NPT, BSP optional

Differential Pressure Gauge: 4.00 mm diameter PVC plastic hose

Use environment

Temperature: (0~50)°C; Relative Humidity: <90% non-condensing, Atmospheric Pressure: (86~106)kPa.a

Communication: RS232 interface

Power supply: AC and DC power supply

Dimensions: Head:120mm×45mm; Total length: 190mm

Weight: 0.7 kg

Pressure Range Select Table of kPa/MPa/bar

Pressure(kPa/MPa)

Pressure(bar)

Accuracy(±%F.S)

PressureType

(-100~0)kPa

(-1~0)bar

0.05/0.1

Gauge Pressure

(0~100)kPa

(0~1)bar

0.05/0.1

Gauge Pressure

(0~160)kPa

(0~1.6)bar

0.02/0.05

Gauge Pressure

(0~250)kPa

(0~2.5)bar

0.02/0.05

Gauge Pressure

(0~400)kPa

(0~4)bar

0.02/0.05

Gauge Pressure

(0~600)kPa

(0~6)bar

0.02/0.05

Gauge Pressure

(0~1)MPa

(0~10)bar

0.02/0.05

Gauge Pressure

(0~1.6)MPa

(0~16)bar

0.02/0.05

Gauge Pressure

(0~2.5)MPa

(0~25)bar

0.02/0.05

Gauge Pressure

(0~4)MPa

(0~40)bar

0.02/0.05

Gauge Pressure

(0~6)MPa

(0~60)bar

0.02/0.05

Gauge Pressure

(0~10)MPa

(0~100)bar

0.02/0.05

Gauge Pressure

(0~16)MPa

(0~160)bar

0.02/0.05

Gauge Pressure

(0~25)MPa

(0~250)bar

0.02/0.05

Gauge Pressure

(0~40)MPa

(0~400)bar

0.02/0.05

Gauge Pressure

(0~60)MPa

(0~600)bar

0.02/0.05

Gauge Pressure

(0~70)MPa

(0~700)bar

0.02/0.05

Gauge Pressure

(0~100)MPa

(0~1000)bar

0.05/0.1

Gauge Pressure

(0~160)MPa

(0~1600)bar

0.1/0.2

Gauge Pressure

(0~250)MPa

(0~2500)bar

0.1/0.2

Gauge Pressure

(-100~100)kPa

(-1~1)bar

0.02/0.05

Gauge Pressure

(-100~160)kPa

(-1~1.6)bar

0.02/0.05

Gauge Pressure

(-100~250)kPa

(-1~2.5)bar

0.02/0.05

Gauge Pressure

(-100~600)kPa

(-1~6)bar

0.02/0.05

Gauge Pressure

(-0.1~1.0)MPa

(-1~10)bar

0.02/0.05

Gauge Pressure

(-0.1~2.5)MPa

(-1~25)bar

0.02/0.05

Gauge Pressure

(-0.1~4)MPa

(-1~40)bar

0.02/0.05

Gauge Pressure

(-0.1~6)MPa

(-1~60)bar

0.02/0.05

Gauge Pressure

(0~100)kPa.a

(0~1)bar.a

0.05

Absolute Pressure

(0~160)kPa.a

(0~1.6)bar.a

0.05

Absolute Pressure

(0~250)kPa.a

(0~2.5)bar.a

0.05

Absolute Pressure

(0~400)kPa.a

(0~4)bar.a

0.05

Absolute Pressure

(0~600)kPa.a

(0~6)bar.a

0.05

Absolute Pressure

(0~1)MPa.a

(0~10)bar.a

0.05

Absolute Pressure

(0~1.6)MPa.a

(0~16)bar.a

0.05

Absolute Pressure

(0~2.5)MPa.a

(0~25)bar.a

0.05

Absolute Pressure

(0~4)MPa.a

(0~40)bar.a

0.05

Absolute Pressure

(0~6)MPa.a

(0~60)bar.a

0.05

Absolute Pressure

(0~10)MPa.a

(0~100)bar.a

0.05

Absolute Pressure

Pressure(kPa/MPa)

Pressure(bar)

Accuracy(±%F.S)

PressureType

(0~16)MPa.a

(0~160)bar.a

0.05

Absolute Pressure

(0~25)MPa.a

(0~250)bar.a

0.05

Absolute Pressure

(0~40)MPa.a

(0~400)bar.a

0.05

Absolute Pressure

(0~60)MPa.a

(0~600)bar.a

0.05

Absolute Pressure

(0~5)kPa

/

0.2

DifferentialPressure

(-5~5)kPa

/

0.1

DifferentialPressure

(0~10)kPa

/

0.1

DifferentialPressure

(-10~10)kPa

/

0.05

DifferentialPressure

(0~16)kPa

/

0.05

DifferentialPressure

(-16~16)kPa

/

0.05

DifferentialPressure

(0~25)kPa

/

0.05

DifferentialPressure

(0~40)kPa

/

0.05

DifferentialPressure

(-40~40)kPa

/

0.05

DifferentialPressure

(0~60)kPa

/

0.05

DifferentialPressure

(-60~60)kPa

/

0.05

DifferentialPressure


Pressure Range Select Table of psi

Pressure(psi)

Pressure(bar)

Accuracy(±%F.S)

PressureType

-15

-1

0.05

Gauge Pressure

2

0.16

0.05

DifferentialPressure

5

0.35

0.05

DifferentialPressure

10

0.7

0.05

Gauge Pressure

15

1

0.05

Gauge Pressure

30

2

0.05

Gauge Pressure

50

3.5

0.05

Gauge Pressure

100

7

0.05

Gauge Pressure

300

20

0.05

Gauge Pressure

500

35

0.05

Gauge Pressure

600

40

0.05

Gauge Pressure

1000

70

0.05

Gauge Pressure

2000

140

0.05

Gauge Pressure

3000

200

0.05

Gauge Pressure

5000

350

0.05

Gauge Pressure

10000

700

0.05

Gauge Pressure

15000

1000

0.05

Gauge Pressure

25000

1600

0.1

Gauge Pressure

36000

2500

0.1

Gauge Pressure
