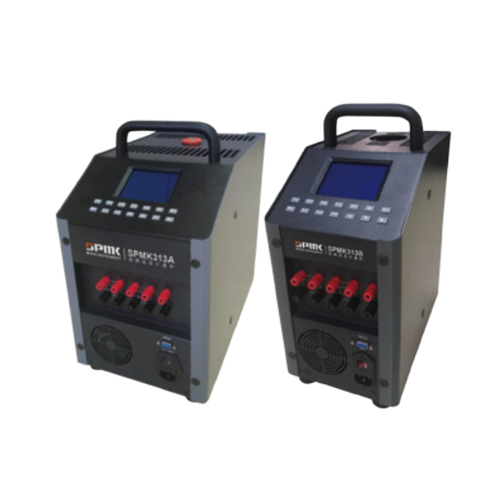

SPMK SPMK313A Temperature Calibrator / Dry Block ((-30~155)℃)

Temperature range: (Ambient temperature 25℃) (-30～155)℃

Temperature deviation: ±0.15℃

Temperature stabilization time: 5 minutes

Display resolution: 0.001℃

Insert depth: 170 mm

Outside diameter of soaking block: Ø25 mm

Standard block insertion aperture: Ø6, Ø8, Ø10mm / customized

Temperature unit: ℃, ℉, K

Temperature difference between holes: ≤±0.05℃ (Using special soaking block for temperature field test)

Axial temperature field: Temperature change within 20mm from the bottom of the block insertion ≤0.5℃

Temperature fluctuation: ±0.03℃/15min

Power supply: 220VAC 50Hz

Communication: RS232

Language: Chinese and English

Dimensions (including carrying handle): (320×240×415) mm

Weight: 15.5 kg

Power: 0.45 kW

Voltage measurement:

(-75～75)mV; ±(0.01%RD+0.005%FS); 0.1μV

(-30～30)V; ±(0.01%RD+0.005%FS); 0.1mV

Current measurement: (-30～30)mA, ±(0.01%RD+0.005%FS), 0.1μA

Resistance 4-wire: (0～400)Ω, ±(0.01%RD+0.005%FS), 1mΩ

Switch measurement: Short circuit resistance <100Ω, Reaction time <10ms, 0.01℃
