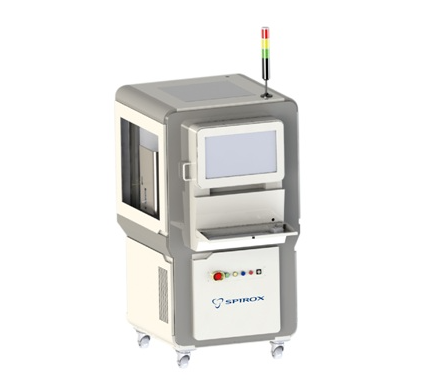

SPIROX LS1000M Package AOI Solution (45 x 45 mm², 1300 x 800 x 1700 mm)

H/W Spec.

Dimension: 1300 x 800 x 1700 mm

Power: AC 220V Single Phase / 60Hz

CDA Air: Dry Air 5 ~ 6 kgf/cm²

Target Device

PKG Type: BGA / QFN / QFP

Max. Package: 40 x 40 mm²

Loading Tray: JEDEC Standard Tray Manual Loading

Vision Spec.

Camera: 6M Pixel Camera

FOV: 45 x 45 mm²

Pixel Resolution: 18 µm

Illumination: 10 CH Led Illuminator

Feature:

One Touch Test: inspection can be executed immediately after loading

Easily load different products without setup change

Fast inspection: 1 tray inspection can be completed in 2 minutes

Real-time upload reports and provide system control according to MIS

Effectively production time saving

Function to search and save inspection results and photos
